Dell Inspiron 15R N5110 Hard-Drive Assembly Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 15R N5110 Hard-Drive Assembly Replacement

Schwierigkeitsgrad

Easy

Schritte

11

Zeitaufwand

7 - 10 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Hard-Drive Assembly.

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in "Before You Begin". After working inside your computer, follow the instructions in "After Working Inside Your Computer".

    • CAUTION: To avoid data loss, do not remove the hard drive while the computer is in Sleep or On state.

    • CAUTION: Hard drives are extremely fragile. Exercise care when handling the hard drive.

  2. YMtN2MDAEwKjhyIb

    • Remove the screws that secure the hard-drive assembly to the computer base.

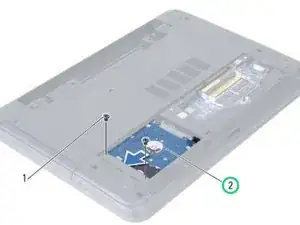

  3. KrjrjxbVoYgRlJuG

    • Slide the hard-drive assembly forward to disconnect the hard-drive assembly from the system board.

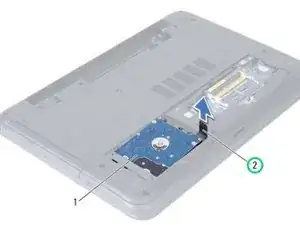

  4. VdDIg2PDgHDtEP5y

    • Using the pull-tab, lift the hard-drive assembly out of the computer base.

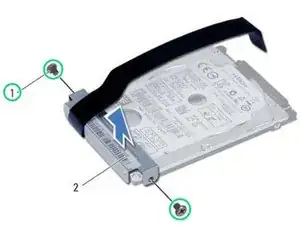

  5. iTApj1PHCYWcWUxd

    • Remove the screws that secure the hard-drive bracket to the hard drive.

  6. OZJWTIoflpg3SssF

    • Lift the hard-drive bracket off the hard drive.

  7. VBEr3HheUVBNq3PD

    • Align the screw holes on the hard-drive bracket with the screw holes on the NEW hard drive.

  8. JUMkCIUcsU6ska3k

    • Replace the screws that secure the hard-drive bracket to the hard drive.

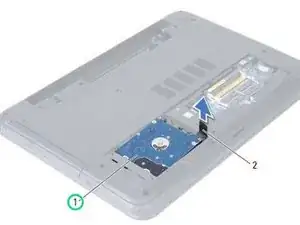

  9. YFvSOYkuDAgg3Oeq

    • Slide and place the hard-drive assembly in the hard-drive bay.

  10. 4VRiLPwAqpDL4abq

    • Slide the hard-drive assembly backward to connect the hard-drive assembly to the system board.

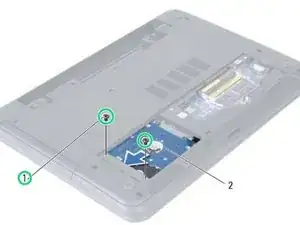

  11. otuarcUlYxHnchDC

    • Replace the screws that secure the hard-drive assembly to the computer base.
