Dell Inspiron 15R N5110 Memory Module Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 15R N5110 Memory Module Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

3 - 5 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Memory Module.

  1. fPX4HxI5HNLpDn5n

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in "Before You Begin".

    • Loosen the captive screw that secures the memory-module cover to the computer base.

  2. iMVqDZpHcekOK2sC

    • Using your fingertips, lift the memory-module cover out of the slots on the computer base.

  3. VJpgRPmNaOJSxZSX
    VJpgRPmNaOJSxZSX
    qxyJe6t3KxldE5P5

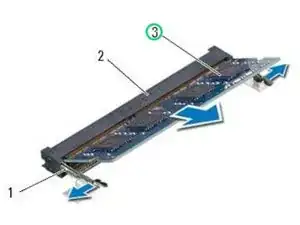

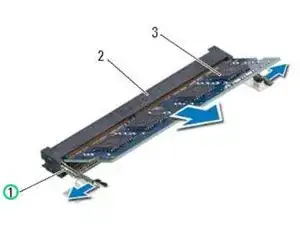

    • Use your fingertips to carefully spread apart the securing clips on each end of the memory-module connector until the memory module pops up.

  4. v1CugQICk2YNC5fr

    • Remove the memory module from the memory-module connector.

    • Align the notch on the NEW memory module with the tab on the memory-module connector.

  6. AIlWyWFmtbPmo1vc

    • Slide the memory module firmly into the connector at a 45-degree angle and press the memory module down until it clicks into place.

    • NOTE: If you do not hear the click, remove the memory module and reinstall it.

  7. yPCuxIHLxrMW56fn

    • Slide the tabs on the memory-module cover into the slots on the computer base and snap the memory-module cover into place.

  8. 4IhHiLoXgnCS35mG

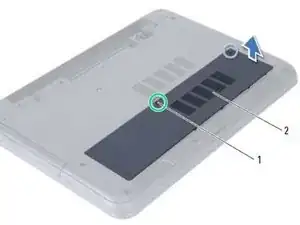

    • Tighten the captive screw that secures the memory-module cover to the computer base.
