Dell Inspiron 15R SE 7520 Display Assembly Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 15R SE 7520 Display Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

5 - 15 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Display Assembly.

  1. qbRvIVoYDsbbgkmd

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in "Before You Begin".

    • Disconnect the antenna cables from the connectors on the Mini-Card.

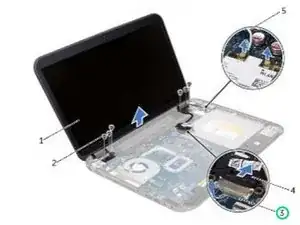

  2. RiQ2olvXXNIDMSci

    • Peel the tape that secures the display cable to the system board and then disconnect the display cable from the connector on the system board.

  3. 5IpvSxTDhgqqRIPb

    • Make a note of the display cable routing and remove the cable from the routing guides.

  4. 1LBuWQHuMakifEuv

    • Remove the screws that secure the display assembly to the computer base.

  5. gNjtHXdE2O1V6VLj

    • Lift the display assembly off the computer base.

  6. RPRlCHo3oQYfrLXp

    • Place the NEW display assembly in position and replace the screws that secure the display assembly to the computer base.

  7. cFB3jAdcLSYbUFWS

    • Route the display cable through the routing guides and connect the display cable to the connector on the system board.

  8. UPKuhQH6QFSYf5IV

    • Adhere the tape that secures the display cable to the system board.

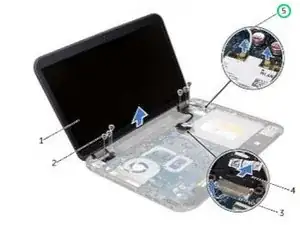

  9. JSOhb1kvUCuXP4n5

    • Connect the antenna cables to the connectors on the Mini-Card.
