Dell Inspiron 15R Webcam Replacement

Turn the device over and locate the battery.

Place thumbs on each latch and push outwards.

Push and slide the battery away from you.

Locate the RAM compartment and the screw on the right hand side. Remove the cover.

Locate and remove the 2.5 mm x 5 mm screw on the upper right hand side of the compartment.

Turn the device around and open it up.

Using your index finger, push down on the F1 and F7 keys.

Using your index finger, push down on the x icon and Home keys.

Locate the keyboard lining (between the black and silver).

Place your spudger between the keyboard lining behind the F1 and F7 keys and pull up.

Place your spudger between the keyboard lining behind the x icon and Home keys and pull up.

Carefully pull and turn the keyboard over.

Lift the black lever.

Remove the keyboard cable

Turn laptop over and remove the bottom four screw covers outlined in red.

Then remove the three base screws.

Turn laptop over and open it. Locate and remove the five palm rest screws.

Locate the palm rest cables. Lift the black levers and unplug the blue cables.

Lift the palm rest until it snaps off.

Close cover and turn laptop over. Locate and remove the four hard drive screws.

Turn laptop over and open it.

Lift and remove the hard drive.

Remove the hard drive connector.

Locate and remove the bottom hinge screws.

Turn laptop over and open it. Locate and unplug the LCD Cable.

Unplug the black and white wires on the wireless antenna.

Remove the two hinge screws on both the left and right hand side.

Remove the screen.

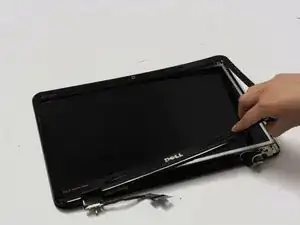

Unsnap and lift the display bezel around the edges and remove it.

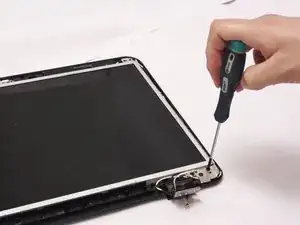

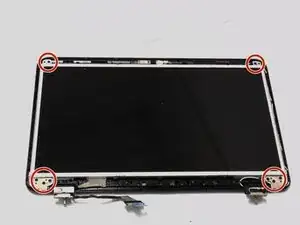

Locate and remove the eight LCD screws outlined in red.

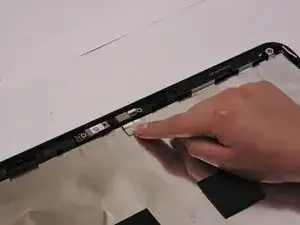

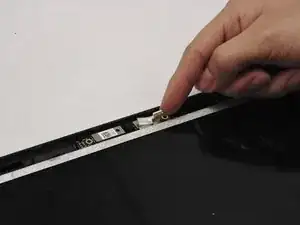

Carefully unplug the camera cable.

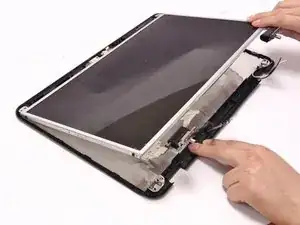

Lift and remove the LCD screen from the backing.

Locate and remove the webcam.
