Dell Inspiron 15z 1570 Hard Drive Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 15z 1570 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

1 - 4 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Hard Drive.

  1. 6pFNFZdRvrkg26Rd

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the procedures in Before You Begin.

    • Remove the four screws that secure the hard drive assembly to the computer base.

  2. XCvQq6qhkBbUoDQ2

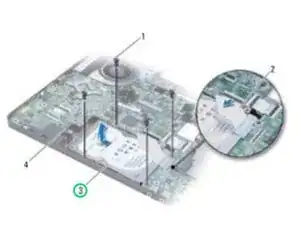

    • Slide and lift the hard drive assembly out of the computer base.

  3. 2T3ytXoHHhNuWZsl

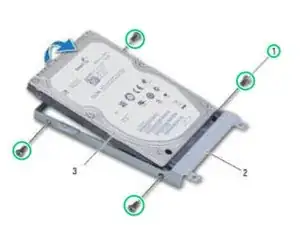

    • Remove the four screws that secure the hard drive to the hard drive bracket.

  4. AGgtnqGgfKIje6eE

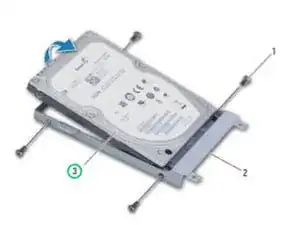

    • Remove the hard drive.

  5. IUbVusQpsqGTZAW3
    IUbVusQpsqGTZAW3
    QdwTLAuFypPK6aZd

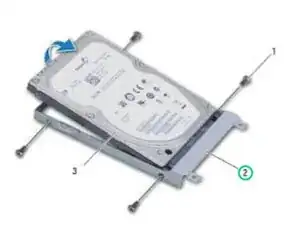

    • Place the NEW hard drive in the hard drive bracket and replace the four screws that secure the hard drive bracket to the hard drive.

  6. 5KHXSOeLbOXsLMHi

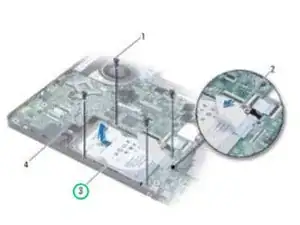

    • Slide the hard drive assembly into the computer base until it is fully seated.
