Dell Inspiron 15z 1570 Memory Modules Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 15z 1570 Memory Modules Replacement

Schwierigkeitsgrad

Very easy

Schritte

4

Zeitaufwand

10 - 40 Sekunden

Einleitung

In this guide, we will be showing you how to remove and replace the Memory Module.

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the procedures in Before You Begin.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on the back of the computer).

    • CAUTION: To prevent damage to the memory module connector, do not use tools to spread the memory module securing clips.

  2. OM5Lc1NhFEGXUd55
    OM5Lc1NhFEGXUd55
    1E2MxQ42mnUHGdq5

    • Use your fingertips to carefully spread apart the securing clips on each end of the memory module connector until the module pops up.

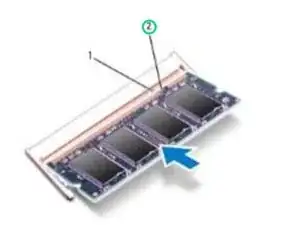

  3. OFT5ABpnqMZMnkCx
    OFT5ABpnqMZMnkCx
    SGbnb3M53161dQdI

    • Align the notch in the NEW memory module with the tab in the memory module connector.

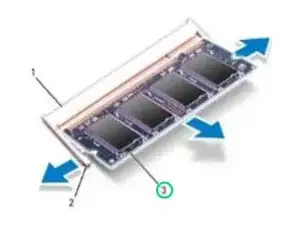

  4. OTGrSXnvcH4odnUh

    • Slide the memory module firmly into the slot at a 45-degree angle, and press the memory module down until it clicks into place. If you do not hear the click, remove the memory module and reinstall it.

    • NOTE: If the memory module is not installed properly, the computer may not boot.
