Dell Inspiron 15z 5523 Hard Drive Assembly Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 15z 5523 Hard Drive Assembly Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

5 - 9 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Hard Drive Assembly.

  1. Zbf11mUuFkwrGMIs

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in "Before You Begin". After working inside your computer, follow the instructions in "After Working Inside Your Computer".

    • Lift the hard-drive assembly to disconnect it from the system board and remove the hard-drive assembly from the computer base.

  2. cjlAbwMfqKeK4KUN

    • Remove the screws that secure the hard drive to the hard-drive bracket.

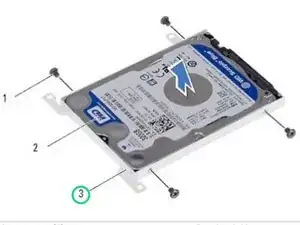

  3. FINT5Aljx6vAoXxM
    FINT5Aljx6vAoXxM
    bW16S6nnmbgGesqw

    • Lift the hard drive out of the hard-drive bracket.

  4. WcYGiv3YyYFRjdlP

    • Place the NEW hard drive into the hard-drive bracket.

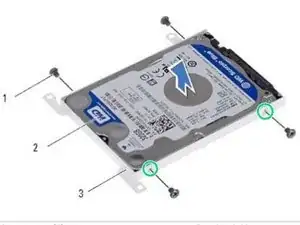

  5. cHLD1VZuQmSlGJrt

    • Align the screw holes on the hard-drive bracket with the screw holes on the hard drive.

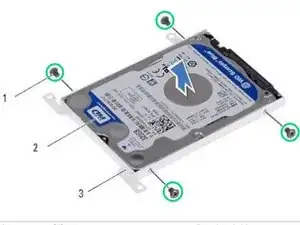

  6. GgnbTIF4WgTeTwXn

    • Replace the screws that secure the hard drive to the hard-drive bracket.

  7. WAtVju1NKAkHQHRI

    • Place the hard-drive assembly on the computer base.

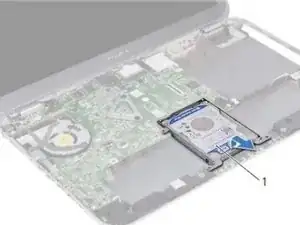

  8. bBEXHvIb3fcDAtvq

    • Slide the hard-drive assembly toward the back of the computer, to connect the hard-drive assembly to the connector on the system board.
