Einleitung
In this guide, we will be showing you how to remove and replace the Memory Module.
Werkzeuge
-
-
Close the display and turn the computer over.
-

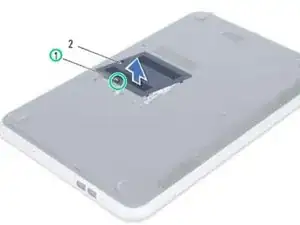

Loosen the captive screw that secures the memory-module cover to the computer base.
-
-
-
Using your fingertips, lift the memory-module cover out of the slots on the computer base.
-
-
-

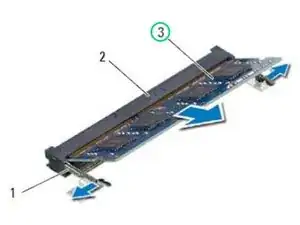

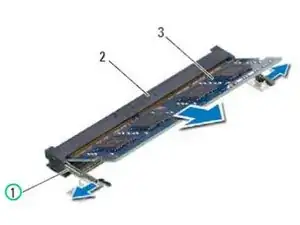

Use your fingertips to carefully spread apart the securing clips on each end of the memory-module connector until the memory module pops up.
-
-
-

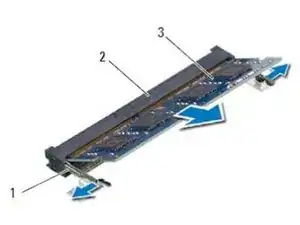

Slide the memory module firmly into the connector at a 45-degree angle and press the memory module down until it clicks into place.
-
-
-
Slide the tabs on the memory-module cover into the slots on the computer base and snap the memory-module cover into place.
-
