Dell Inspiron 17 5765 Battery Replacement

Geschrieben von: darrius
  • Kommentare: 1
Dell Inspiron 17 5765 Battery Replacement

Schwierigkeitsgrad

Very easy

Schritte

6

Zeitaufwand

10 - 15 Minuten

Einleitung

How to remove and replace the battery.

  1. FIUICiEkWO4VrDdh

    • Remove the screws that secure the battery to the palm rest and keyboard assembly.

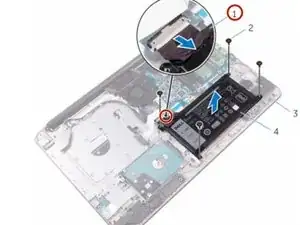

  2. CZTgE6GKjkABTJNB

    • Disconnect the battery cable from the system board.

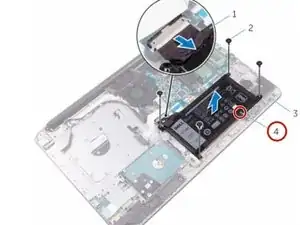

  3. evFNarKCJ2sgiiyf

    • Lift the battery off the palm rest and keyboard assembly.

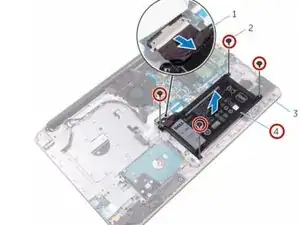

  4. A222PapkVJ1RigTv

    • Align the screw holes on the battery with the screw holes on the palm rest and keyboard assembly

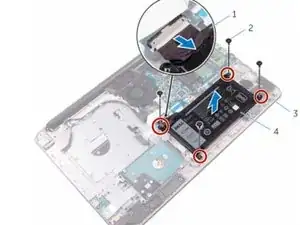

  5. NAyjZYgFTFZE3wUM

    • Replace the screws that secure the battery to the palm rest and keyboard assembly.

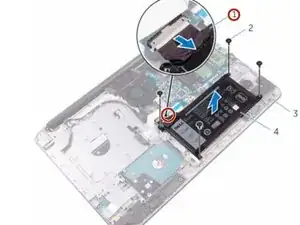

  6. BQ5LATSQEZ4BDSUX

    • Connect the battery cable to the system board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
