Dell Inspiron 17 5765 Removal of Base Cover

Geschrieben von: Christopher Melo-Pelaez
  • Kommentare: 0
Dell Inspiron 17 5765 Removal of Base Cover

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

5 Minuten

Einleitung

  1. jJMDAWMNESJVjFqf

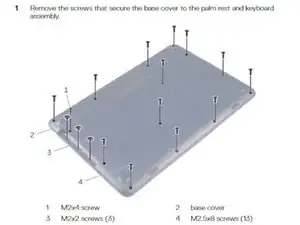

    • Remove the screws that secure the base cover to the palm rest and keyboard assembly.

  2. O6JVMukAObYht1Er

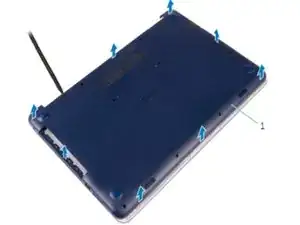

    • Using a plastic scribe, pry the base cover off starting from the top-left corner of the computer base.

    • Lift the base cover off the palm rest and keyboard assembly at an angle.

  3. ebe3dfDOAepASiQW

    • Put the base cover back on the laptop and do the reverse of step 1.

Abschluss

To reassemble your device, follow these instructions in reverse order.
