Dell Inspiron 17-3721 CMOS Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

2

Zeitaufwand

2 - 3 Minuten

Einleitung

Over time, a laptop's CMOS battery will stop holding it's charge and eventually die out. This guide will show how to remove and replace the CMOS battery of the device.

  1. ARNxPB1WFciKfSFh
    ARNxPB1WFciKfSFh
    2xtIAxlBYS2HkIPv
    egEbQPWpHVSm6GeA

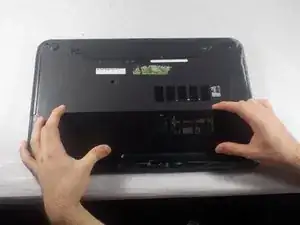

    • Remove the two 6.5 mm PH1 Philips head screws on the back panel.

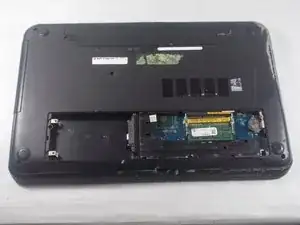

    • Lift up the small panel from the top, using the plastic opening tools if necessary.

  2. aLW3gueOcSEfmNpf
    aLW3gueOcSEfmNpf
    dkubKlyqYoSiXu5i

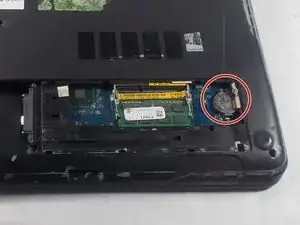

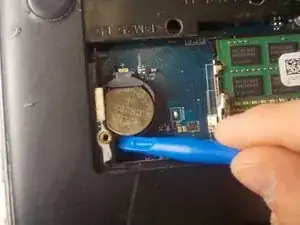

    • Remove the CMOS battery with the plastic opening tools.

    • Be careful while prying it open, the battery holder can break if you use too much force.

    • Do not use metal tools when touching anything that can have an electric charge.

Abschluss

To reassemble your device, follow these instructions in reverse order.
