Dell Inspiron 17-3721 Keyboard Replacement

Geschrieben von: Kevin Prairie
  • Kommentare: 2
Dell Inspiron 17-3721 Keyboard Replacement

Schwierigkeitsgrad

Easy

Schritte

2

Zeitaufwand

2 - 5 Minuten

Einleitung

Malfunctioning keys or a completely broken keyboard can render a laptop useless to the user. This guide will show the steps to replace the keyboard of this device.

  1. jemgXSk2x2getKr1
    jemgXSk2x2getKr1
    5dg3SpPjKJ3dpSgQ

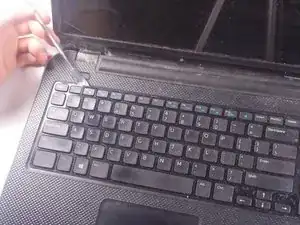

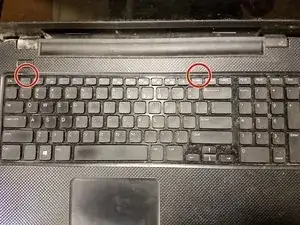

    • Use a plastic opening tool or a metal spudger to pry out the tabs on top of the keyboard.

    • After prying the tabs up, carefully pull the keyboard out of the laptop.

    • Use caution when prying the tabs up or lifting the keyboard up, as the plastic material and the strip on the keyboard can easily break.

    Remove all screws on the underside, remove the RAM and Hard Drive, and all case screws around the Hard Drive bay

    Richard Holmes -

  2. b2eA2ZJRDalBDdx3
    b2eA2ZJRDalBDdx3
    CNcuVaIUhYVBtLa2

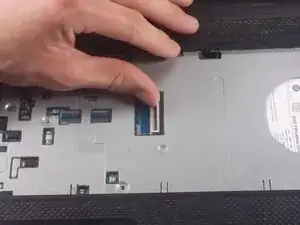

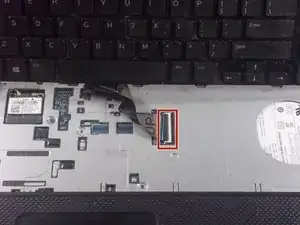

    • Once the keyboard is lifted, locate the release tab.

    • Using a plastic opening tool or your finger, lift the tab so that it opens .

    • Once the tab is open, the strip on the keyboard can be removed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
