A broken optical drive will prohibit users from reading or loading anything from a disk onto their laptop. This guide will show the steps to replace the optical drive on this device.
-
-
Use a plastic opening tool or a metal spudger to pry out the tabs on top of the keyboard.
-
After prying the tabs up, carefully pull the keyboard out of the laptop.
-
-
-
Once the keyboard is lifted, locate the release tab.
-
Using a plastic opening tool or your finger, lift the tab so that it opens .
-
Once the tab is open, the strip on the keyboard can be removed.
-
-
-

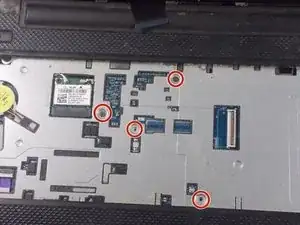

Remove the four 6 mm PH1 Philips head screws under the keyboard.
-

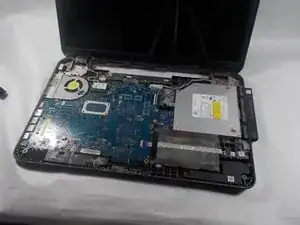

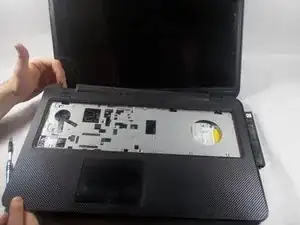

Carefully pop off the cover using the plastic opening tools and your hands.
-
-
-

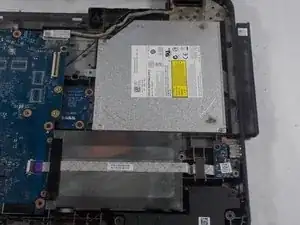

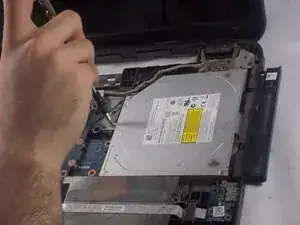

Remove the 4 mm PH1 Philips head screw holding down the optical drive.
-

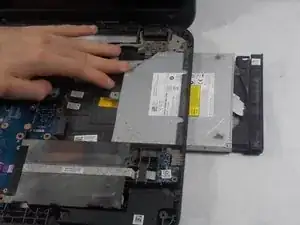

Use your hand to slide the drive out of the device.
-
To reassemble your device, follow these instructions in reverse order.
Remove all screws on the underside, remove the RAM and Hard Drive, and all case screws around the Hard Drive bay
