Dell Inspiron 17-5755 Hard Drive Replacement

Geschrieben von: Jeff
  • Kommentare: 2
Dell Inspiron 17-5755 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

5 - 20 Minuten

Einleitung

This guide will allow you to replace a damaged/faulty hard drive for the Dell Inspiron 17-5755. Please ensure that the battery is removed before performing this replacement

  1. pBVaIGrYRJuJWYeT

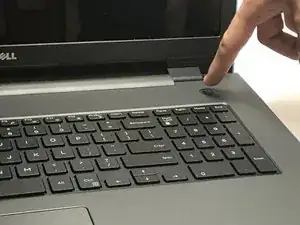

    • Make sure the computer has been shut down, and isn't plugged into an outlet before attempting to remove the battery.

  2. gDMxfARFDTRjdNDb
    gDMxfARFDTRjdNDb
    3YCs2IHPVfEnoSUT

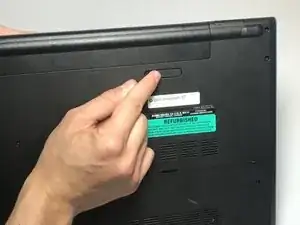

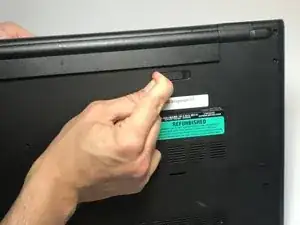

    • Find the battery release latch on the bottom side of the computer.

    • Slide the latch to the left until you hear a "click". This indicates that the battery has been released.

  3. GM22vt5I1igQDNeL

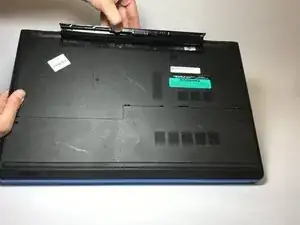

    • Safely remove the battery from the laptop.

  4. fXEBnTHFCQurHVhR
    fXEBnTHFCQurHVhR
    Ji1PutJhjIxlW1Tk
    XlxSEXXQRerNLReq

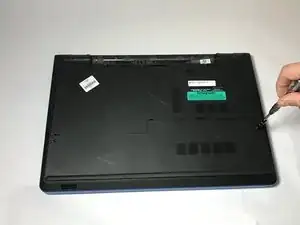

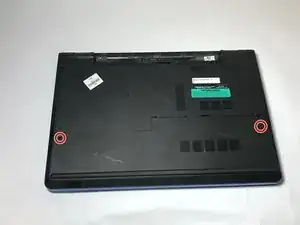

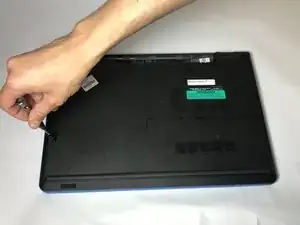

    • Turn over your laptop and locate the two screws which secure the base cover.

    • Use a Phillips #0 screwdriver to unscrew the 8mm screws which secure the base cover.

  5. YevdANPg5YqUoapl
    YevdANPg5YqUoapl
    iqg2GtjXYvdwuQ46

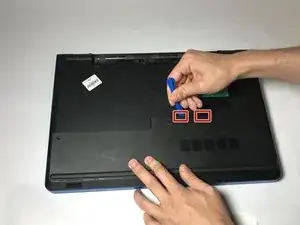

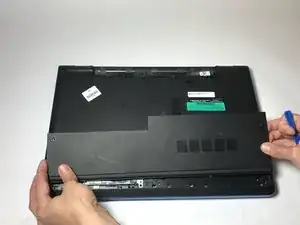

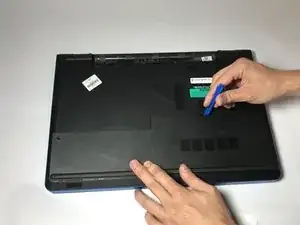

    • Locate the tabs that hold the base cover to the laptop and use a plastic opening tool to gently release the base cover.

  6. pN2QlNCR4VC3YGme
    pN2QlNCR4VC3YGme
    bcQVTxgXNJcBIWod
    QHaWewTINxQpHReI

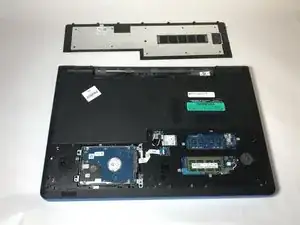

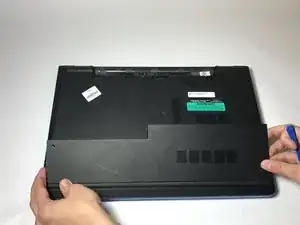

    • Now with the base cover removed, you may lift it off of the laptop and continue.

  7. crfJBKt2pZVxxoG2
    crfJBKt2pZVxxoG2
    cGerXIV5wVjEOcmB
    FkMrPrsYRyFKFVpv

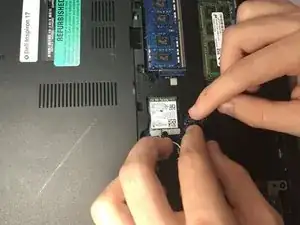

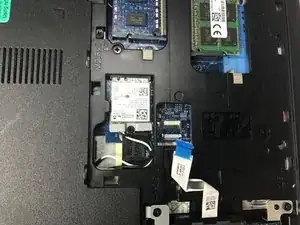

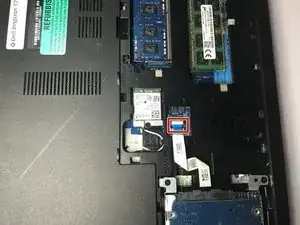

    • Locate the hard drive cable, and disconnect it from the laptop by lifting the latch which secures the cable.

  8. CAckee4MNDCgjqLd

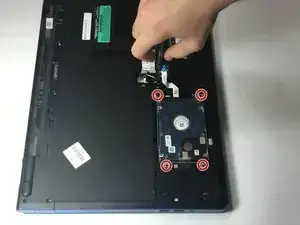

    • Use a Phillips #0 screwdriver to remove the four 8mm screws which secure the hard drive assembly to the laptop.

  9. PvG1Sk2gKo3WS1Jt
    PvG1Sk2gKo3WS1Jt
    bhfiT4RmGg1pBHli
    EUG51JNkwHAqUcpN

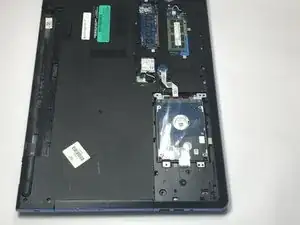

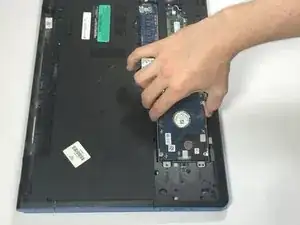

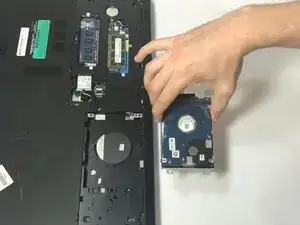

    • Carefully remove the hard drive and its assembly from the laptop.

  10. XJrsk2vYixVLZUFi
    XJrsk2vYixVLZUFi
    3ceTHZTFcUOZVcXW
    GADRqJTfCCXYgJfp

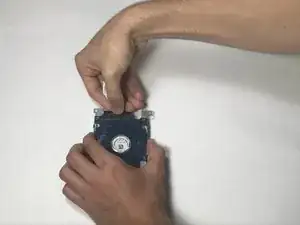

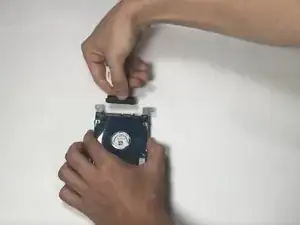

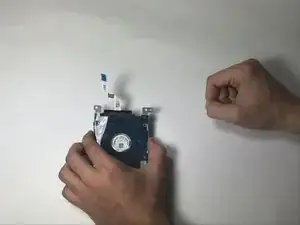

    • Remove the interposer by grabbing the black portion of the assembly, and pulling it away from the hard drive.

    • Be sure to not remove the interposer by pulling on the cable attached to it.

  11. lRFjQi1SlrPrbZej

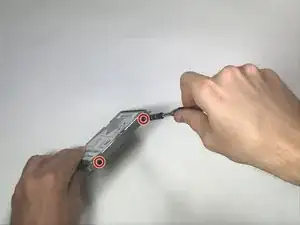

    • Use a Phillips #0 screwdriver to remove the four 4mm screws on either side of the hard drive assembly.

    • These screws are very small. Make sure not to misplace them.

  12. Pc2VDCLDUHDcTyaY
    Pc2VDCLDUHDcTyaY
    gLQPKheWnPuMTTeP
    4nAfYJbEMxLMRBQ6

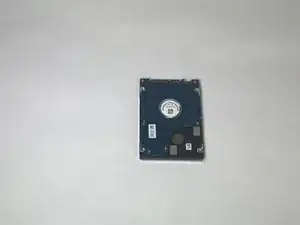

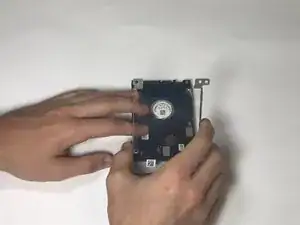

    • Safely remove the hard drive assembly from the hard drive to complete the process.

Abschluss

To reassemble your device, follow these instructions in reverse order.
