Einleitung
You may want to remove the hard drive to upgrade to a higher capacity drive or if your files have become corrupted and unrecoverable.
Werkzeuge
Ersatzteile
-
-
Place the laptop on a flat stable surface.
-
Flip the laptop over so the underside is visible.
-
-
-
Locate the battery lock switch.
-
Slide the lock switch to the left (away from the lock symbol).
-
Slide the battery out away from the laptop.
-
-
-
Remove the two 1mm double wide Phillips #00 screws.
-

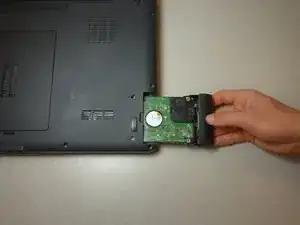

Pull the hard drive away from the laptop.
-
-
-

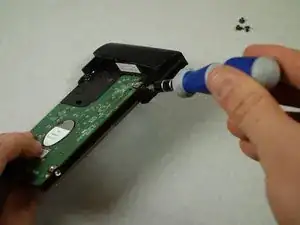

Remove the two #00 1mm screws on both sides of the hard drive.
-

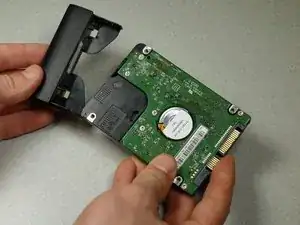

Pull the hard drive cover away from the hard drive and set the cover aside.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
