Einleitung

It is useful to to replace the hard drive if your computer has become slow or if your programs freeze or crash.

  1. JHP4UWVsDntRTe6P
    JHP4UWVsDntRTe6P
    dbGVwcstspIYBlPm
    • Unplug the laptop before changing the battery to avoid electric shock.

    • Place the laptop on a flat stable surface.

    • Flip the laptop over so the underside is visible.

  2. KIikyHykZooSNZhZ
    KIikyHykZooSNZhZ
    pjii2PvFmBOgqlMO
    • Locate the battery lock switch.

    • Slide the lock switch to the left (away from the lock symbol).

    • Slide the battery out away from the laptop.

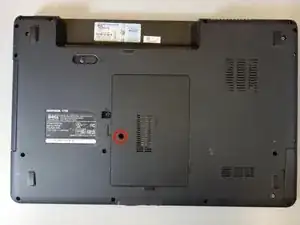

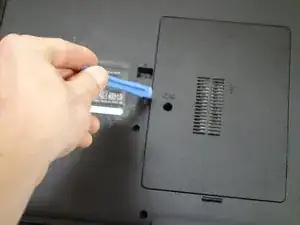

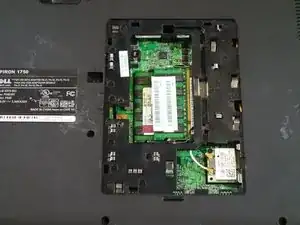

  3. xNe5DTqVy1YIkdx4
    xNe5DTqVy1YIkdx4
    2qlaZVrBPHEXLIMa
    eJtljEKVXKjOtKlJ
    • Remove the one 2mm Phillips #00 screw on the module cover.

    • Use the plastic opening tool to lift the module cover.

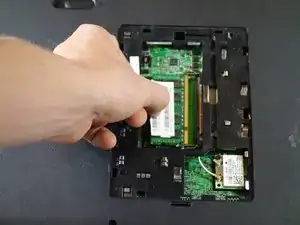

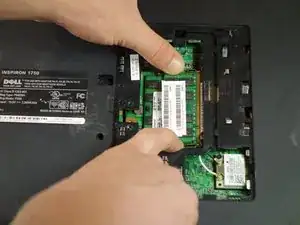

  4. qOiUjE54hLvwoJCW
    qOiUjE54hLvwoJCW
    yRkthakfWpTmRsFf
    • Pull the metal tabs away from the RAM chip to release it from the motherboard.

    • Pull the chip up from the laptop.

    • Use the plastic opening tool to lift the chip out if it's difficult to do with your hands.

    • Repeat this process for the RAM chip directly beneath the last one.

Abschluss

To reassemble your device, follow these instructions in reverse order.
