Dell Inspiron 17R-5737 Speaker Replacement

Geschrieben von: David Callahan
  • Kommentare: 0
Dell Inspiron 17R-5737 Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

14

Zeitaufwand

25 Minuten

Einleitung

This guide will show you how to replace the speakers of a Dell Inspiron 17R-5737. The speakers are often replaced when your computer is having issues with audio playback. To replace the speakers, you must first disassemble a vast majority of the laptop.

  1. CemAipiYidAcDGLU

    • Make sure the laptop is off before attempting to remove the battery.

    • Flip over your laptop so that the battery faces you.

  2. WgUHwQNfaem1GDLX
    WgUHwQNfaem1GDLX
    lBEWbCUXBUefdEUH

    • Slide each latch away from the battery to unlock it.

  3. NXM1KlG2h3mmfcrS
    NXM1KlG2h3mmfcrS
    UBpsehbK1pMMwVCg

    • Lift the battery upwards to remove it.

    • Continue holding the latches when removing the battery.

  4. 1bcJDUwAANxrBt1v
    1bcJDUwAANxrBt1v
    F5xZNmMQWdUOaUgF

    • Remove one 4.8mm screw with a JIS #00 screwdriver.

    • Remove the optical drive.

  5. KrYTZAi4Li1xdgpj

    • Remove two 4.8mm screws with a JIS #00 screwdriver.

    • Remove the access panel.

  6. I2RjQKBsODhpMHRH
    I2RjQKBsODhpMHRH
    sbQHfNIK5fifbreE
    5CRNQgXxOXZcEqku

    • Remove three 4.8mm screws from the hard drive with a JIS #00 screwdriver.

    • Slide the hard drive to the left.

    • Slide the hard drive to the right and up.

  7. G2frEDf3PMqYa51y
    G2frEDf3PMqYa51y
    mMsOKMsOMLP5vOOd

    • Slide the two clips away from the RAM.

    • Lift the RAM out.

  8. YZhqpBm1jRMqUZVS

    • A metal spudger can scratch delicate internal parts. Be extra careful when removing the keyboard.

    • Use a metal spudger to loosen the main frame of the keyboard.

    • A metal spudger should be used instead of a plastic one because a plastic one will probably break.

    • Make sure to get the spudger under the entire keyboard and not just under the keys.

  9. BOF1DKu45UQ2luUD
    BOF1DKu45UQ2luUD
    PQaDiuGgjvVZO1ul
    fCpUCnLEuTrGe361

    • Slowly lift the keyboard.

    • Lift the locking flap that holds the ribbon cable in place.

    • The white line on this ribbon cable marks the edge of the connection area. To reinstall, insert the cable into the connector up to this line, and then close the locking flap.

    • Remove the keyboard.

  10. xPFdNkmkBlOAZXvA
    xPFdNkmkBlOAZXvA
    JSULlckEHHJdIZZP
    62wfibJFGePiR1AZ

    • Remove two 1.6mm screws from beneath the optical drive with a JIS #00 screwdriver.

    • Remove the nine remaining 4.8mm screws from the back of the computer with a JIS #00 screwdriver.

  11. mIFI2HhZhGEFmXJx
    mIFI2HhZhGEFmXJx
    CYEjsk2LZCjnGeRe
    Axct16UbhrSx31FE

    • Remove the two exposed ribbon cables.

    • Remove the palmrest.

  12. TwiHDILKO3IfAZLL

    • Remove the Wi-Fi chip by pulling upwards.

  13. 5FHOLJKYqYDwN5Dw
    5FHOLJKYqYDwN5Dw
    WmTYJE3LUHphvFGU
    jNFM3e522drRtqwX

    • Remove six 4.8mm screws with a JIS #00 screwdriver.

    • Remove two 3.2mm screws with aJIS #00 screwdriver.

    • Disconnect three cables from the front of the motherboard.

    • Slowly lift the motherboard exposing the bottom side.

    • Remove the ribbon cable from the back of the motherboard.

    • Remove the motherboard.

  14. IpiYvtPAyOwGKvPI
    IpiYvtPAyOwGKvPI
    PhiCMJYaWnlknHDj
    ZVNGoQrtjgZTXZh1

    • These screws strip easily.

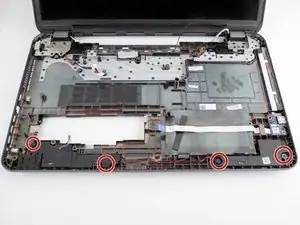

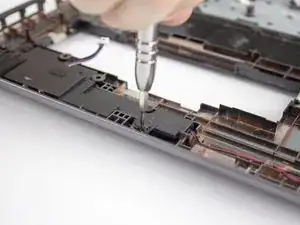

    • Remove two 1.6mm screws on each speaker with a JIS #00 screwdriver.

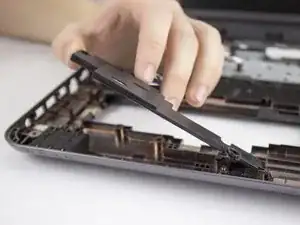

    • Remove the speakers.

Abschluss

To reassemble your device, follow these instructions in reverse order.
