Dell Inspiron 17R-N7110 Motherboard Replacement

Geschrieben von: Emily Cone
  • Kommentare: 5
Dell Inspiron 17R-N7110 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

15

Zeitaufwand

10 - 15 Minuten

Einleitung

This guide will walk you through replacing your Dell Inspiron 17R-N7110 motherboard. You will be handling delicate electronic components during this process, so be sure to wear the anti-static wrist strap. Be diligent as you remove various cables and screws using this guide, as removal of the motherboard may cause damage to cables or be impossible entirely if cables/screws are missed.

  1. 2cAuZMSVVudnyJQe
    2cAuZMSVVudnyJQe
    N5TnZlD3dFNQoUtd
    sVXusuhC6SXSnwVD

    • Do not touch any electronic components without wearing the anti-static wrist strap. Failure to do so poses a risk of static electric shock, and may cause damage to components.

    • Place the laptop on a flat surface with the Dell logo upside down.

    • Flip the laptop over. The battery will be in the top center.

  2. OWPtg4OC5ifjH6MZ
    OWPtg4OC5ifjH6MZ
    CbSNyL2ljsSX1mJx

    • Slide both the left lock and right lock, towards the center of the battery.

    • Push upwards on the grip on the bottom of the battery to remove it.

  3. G5bYdORdkt5COBNW
    G5bYdORdkt5COBNW
    3ehYnpeM1EXLPU42
    uKIkjJJXMQSJZGSS

    • Do not pull the keyboard away from the laptop. The keyboard is connected to the motherboard by a cable. Pulling the keyboard may cause damage to the keyboard and/or motherboard.

    • Metal spudgers and similar prying tools can damage internal components like the motherboard. It is ideal to use a regular black nylon spudger or a plastic opening tool, but for this device the metal jimmy was the only tool to work.

    • Flip over and open your device. Gently wedge the metal Jimmy into the rightmost hole at a 45-degree angle. Make sure that the Jimmy is between the silver metal portion of the keyboard and the silver plastic edge around the keyboard.

    • Tilt the metal jimmy away from you to pry up the edge of the keyboard.

    • Repeat the previous actions on each of the other three holes to release the keyboard.

  4. lS5Ztpof2tEFJm4k
    lS5Ztpof2tEFJm4k
    SpDNInLSxSZ5MZAD

    • Gently flip the keyboard over and lay it on the touchpad area.

    Only the frame of the keyboard came off, keys remained there

    Marton Czegledi -

  5. 5uDsTUvS4quYQSos
    5uDsTUvS4quYQSos
    rTFefCNO5xqrrvW1
    wRTu2URoPy15lJGV

    • Flip up the black flap where the keyboard cable connects to the motherboard

    • Gently pull the cable away from the slot to release the keyboard.

    • Remove the keyboard from the device.

  6. X1yf5cCYIWK1BG1d
    X1yf5cCYIWK1BG1d
    eEeCP6gDvW2liQpk

    • Flip the laptop over so it is bottom-up.

    • Use a Phillips #0 screwdriver to unscrew the fifteen 5mm screws pictured.

    the CDROM drive also needs to be removed as it is hiding two screws

    Matthew Homeyer -

  7. FwsmnSc1USvURkCM
    FwsmnSc1USvURkCM
    fCYnWyOYGnT5ACFF
    323DErm5KXRuXxaO

    • Flip the laptop over.

    • Use a Phillips #0 screwdriver to unscrew the four 5mm screws from the palmrest.

    • Flip up the black flaps over the three cables pictured and gently pull them out.

  8. U4j4g5XnsY6cID65
    U4j4g5XnsY6cID65
    jRNq4PeKsSMVFo51

    • Do not proceed without holding the laptop screen/lid for support. The screen is very heavy and may cause the device to fall if not held and supported.

    • Use a plastic opening tool to pry up the edges of the palmrest cover.

    • Pull off the palmrest cover. You will hear some popping sounds.

    If the keyboard shroud does not pry up from the right side you need to remove the disk drive by sliding it to the right. Once you remove the drive turn the laptop over and you will see two M2x2.5 screws, remove them and you will be able to lift the keyboard shroud up.

    Christopher Armour -

    My palmrest cover did not disengage on the right side at this step. I used a paperclip to manually eject the optical drive tray, and then used a plastic pry tool to disconnect the plastic optical drive bezel. Once this was done, I closed the optical drive tray and was able to access the two M2x2.5 screws holding it in place.

    Mecnoc M -

    Following the instructions the palm rest would not easily come off. Turns out there are two screws underneath in the battery compartment the hold the palm rest in under the screen. Flip the laptop before prying the edge clips out. Also, once you have created a gap along the edge its easier to slip a credit card in and just push along the edge all around the palm rest. All the “hooks” will release easily.

    1948hdjockey -

    • Optical drive MUST be removed beforehand: remove the screw on bottom of laptop on the small panels that has the service tag number. Then use a paperclip to eject the drive and pull it out. This reveals the two small silver screws that attach the top cover. Remove those screws prior to prying off the cover.

  10. bSNIAsqyml5BZPLS
    bSNIAsqyml5BZPLS
    v6AP2GcwVlGUEwkA

    • Use a Phillips #0 screwdriver to unscrew the two 5mm screws holding the hard drive.

    • Slowly lift up on the left side of the hard drive and pull to the left.

  11. aHUQkboNcTWErZpj
    aHUQkboNcTWErZpj
    JW5DuM5O6G6moxGE

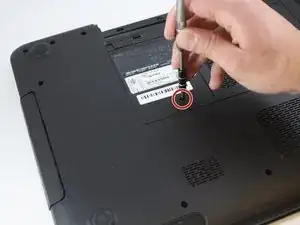

    • Flip the laptop over so it is bottom-up.

    • Use a Phillips #0 screwdriver to unscrew the 5mm that holds the DVD drive in place

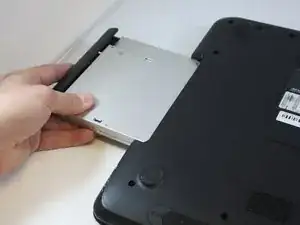

    • Pull out the DVD drive.

    • Flip the laptop over again so it is top-up.

  12. SHuJa11ksQMELvJm
    SHuJa11ksQMELvJm
    vGhZNSyJskSFoQJx
    3HbpaJBLxymdE5Vq

    • Do not touch any electronic components without wearing the anti-static wrist strap. Failure to do so poses a risk of static electric shock and can damage components.

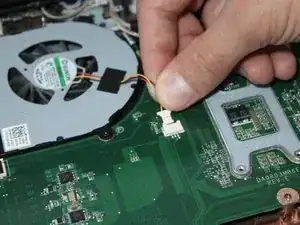

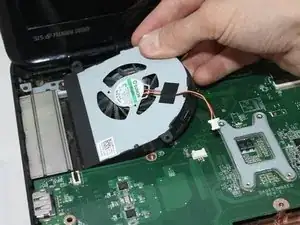

    • Gently pull the cooling fan cord to unplug it.

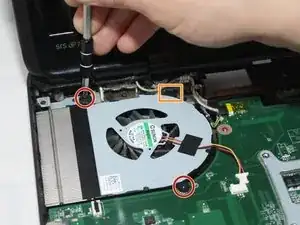

    • Use a Phillips #0 screwdriver to remove the two 5mm screws from the cooling fan.

    • Lift the top right corner of the fan and pull the fan up and to the right.

  13. dKiHQJBFnyvr1veK
    dKiHQJBFnyvr1veK
    fX1or5rIQdr1jXCE

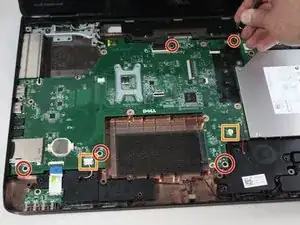

    • Use a Phillips #0 screwdriver to unscrew the five 5mm screws from the motherboard.

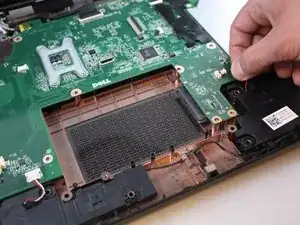

    • Wiggle the two cables pictured until they are free.

  14. xHD44CZFGen4i4GY
    xHD44CZFGen4i4GY
    DSfydyU1RUgRucqW

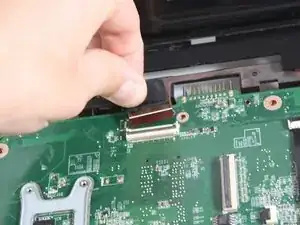

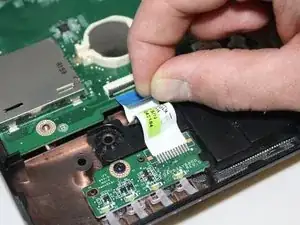

    • Flip up the black flaps over the two cables pictured and pull the cables out.

  15. IZgvwlAKxsQi1HW6
    IZgvwlAKxsQi1HW6
    e6thRBWQ6qQIr2wi
    KUeiuyGgKZtSRiO2

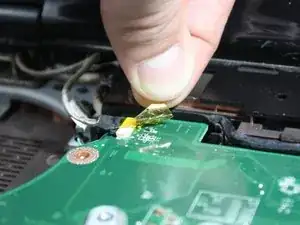

    • Use your finger to pull up the yellow tape and pull out the webcam cable.

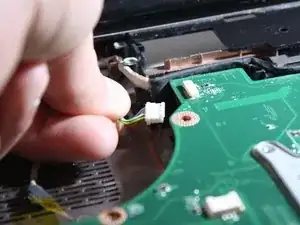

    • Pull out the DC power jack cable.

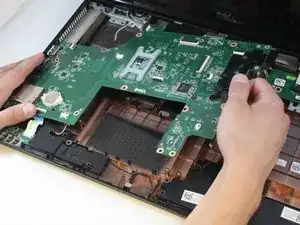

    • Lift the motherboard from the right edge to remove it. The motherboard is plugged into the I/O board, so removing it could be difficult and require some force.

Abschluss

To reassemble your device, follow these instructions in reverse order.
