Dell Inspiron 17R-N7110 RAM Replacement

Geschrieben von: Emily Cone
  • Kommentare: 0
Dell Inspiron 17R-N7110 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 - 10 Minuten

Einleitung

This guide will walk you through removing and replacing your Dell Inspiron 17R-N7110 RAM stick(s). You will be handling delicate electronic components during this process, so be sure to wear the anti-static wrist strap for this replacement.

  1. 2cAuZMSVVudnyJQe
    2cAuZMSVVudnyJQe
    N5TnZlD3dFNQoUtd
    sVXusuhC6SXSnwVD

    • Do not touch any electronic components without wearing the anti-static wrist strap. Failure to do so poses a risk of static electric shock, and may cause damage to components.

    • Place the laptop on a flat surface with the Dell logo upside down.

    • Flip the laptop over. The battery will be in the top center.

  2. OWPtg4OC5ifjH6MZ
    OWPtg4OC5ifjH6MZ
    CbSNyL2ljsSX1mJx

    • Slide both the left lock and right lock, towards the center of the battery.

    • Push upwards on the grip on the bottom of the battery to remove it.

  3. FmZFOFAk1HcVPmL4
    FmZFOFAk1HcVPmL4
    EojuLXssEglUnjMt

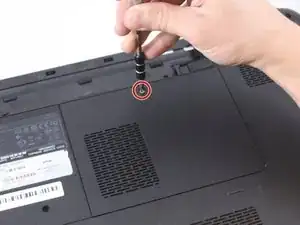

    • Using a Phillips #1 screwdriver, unscrew the .7mm screw at the top of the RAM compartment as pictured.

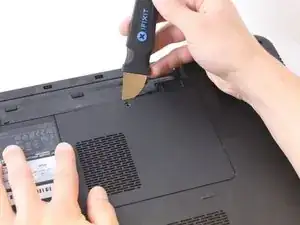

    • Use a metal Jimmy to pry open the RAM cover from the top of the compartment.

  4. BFkdM4xifR2ovTVd
    BFkdM4xifR2ovTVd
    JZ1Yt3SVj6vidMYA
    KpCvaXY4cL6xOsGH

    • Do not touch the RAM sticks without releasing static electricity build up. Make sure you are wearing the anti-static wrist strap, and that the metal clip is attached to a grounded metal object.

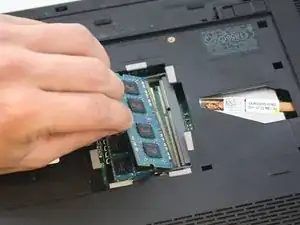

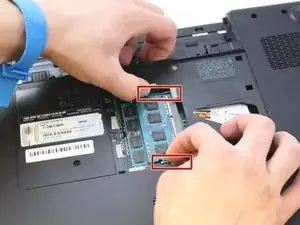

    • There are two small plastic prongs to the sides of the first RAM stick. Push the prongs away from each other to release the RAM stick.

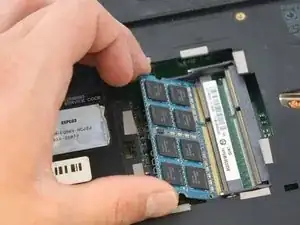

    • Gently remove the RAM stick.

    • If your laptop has a second RAM stick located underneath the first one, repeat this step to remove it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
