Einleitung

Is your computer constantly resetting the time and date? Consider using this guide to replace the CMOS battery in your device.

  1. rBoWkmLjKIEWoKbK
    rBoWkmLjKIEWoKbK
    JKwXJnTyf5NiZJxG
    • Ensure the device is powered off and unplugged. Close the device and orient it face up, with the hinges further away from you.

    • Flip the device over so the backside is facing you.

  2. hNnxvqZkr5B1MKl6
    • Using the Phillips #1 screwdriver, remove all nine 7mm screws.

  3. NJsHhBGIXyxNB6hQ
    NJsHhBGIXyxNB6hQ
    uKpdoJJTLPaQefGl
    • Using the plastic opening tool, pull the back panel upward. Move the opening tool along the edge of the device and lift the panel off of your device.

    • Be aware, the back panel is kept in place by magnetic clips. They will offer some resistance, but continue to gently leverage upwards.

  4. RV31RqQygmQWUNgU
    RV31RqQygmQWUNgU
    fLbUFrYWPKImIRvq
    ZqFVIN51CsifhEP1

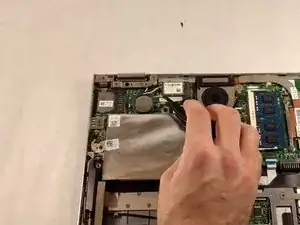

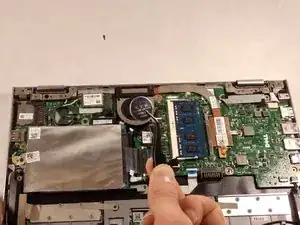

    • Using a pair of tweezers, lift the exposed edge of the CMOS battery upward.

    • Once the CMOS battery has been loosened, remove it from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
