Dell Inspiron 3148 RAM Replacement

Geschrieben von: Christopher Gravelle
  • Kommentare: 0
Dell Inspiron 3148 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

10 - 15 Minuten

Einleitung

Is your computer experiencing problems with loading? Consider using this guide to replace the RAM in your device.

  1. rBoWkmLjKIEWoKbK
    rBoWkmLjKIEWoKbK
    JKwXJnTyf5NiZJxG

    • Ensure the device is powered off and unplugged. Close the device and orient it face up, with the hinges further away from you.

    • Flip the device over so the backside is facing you.

  2. hNnxvqZkr5B1MKl6

    • Using the Phillips #1 screwdriver, remove all nine 7mm screws.

  3. NJsHhBGIXyxNB6hQ
    NJsHhBGIXyxNB6hQ
    uKpdoJJTLPaQefGl

    • Using the plastic opening tool, pull the back panel upward. Move the opening tool along the edge of the device and lift the panel off of your device.

    • Be aware, the back panel is kept in place by magnetic clips. They will offer some resistance, but continue to gently leverage upwards.

  4. Iof3Kcpepal4NFHE

    • Locate the RAM chips on the motherboard.

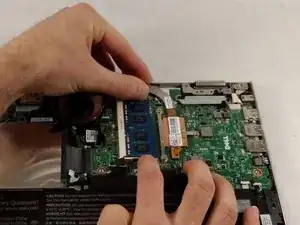

  5. 4cGLBFDvLEaVa5Zc

    • There are two tabs on either side of the RAM chip. Pull them away from the chip.

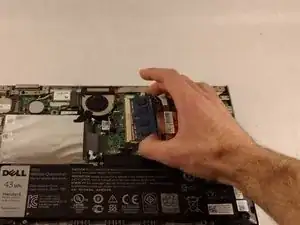

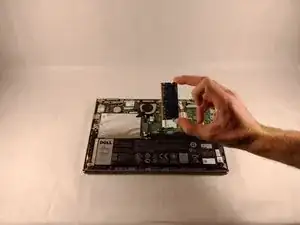

  6. MrVGRZtQOuUsSwPT
    MrVGRZtQOuUsSwPT
    wmdPsICBAcEyJPQX

    • The RAM chip will pop up out of the slot.

    • Pinch the RAM between two fingers, making minimal contact. Gently pull away from its port.

    • Remove the RAM from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
