Einleitung

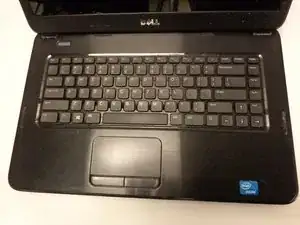

The Dell Inspiron 3520 has a basic keyboard that is easily accessible from the open surface of the notebook. The 3520 model does not have a keyboard backlight. This makes the keyboard much simpler to remove. Keep in mind that this will require some force on the repairers part.
Werkzeuge
-
-
Turn off notebook
-

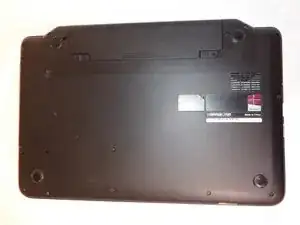

Set the notebook upside down with the battery facing away from you.
-

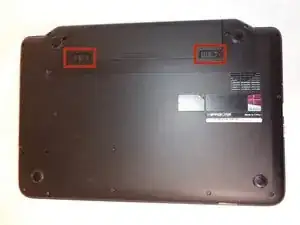

Locate the unlock and release sliding tabs on the bottom right and left hand corners of the battery respectively.
-
-
-

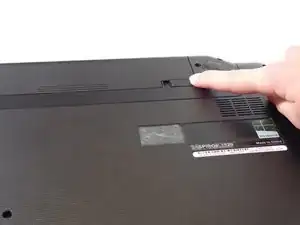

Slide the right tab to the right to unlock the battery.
-

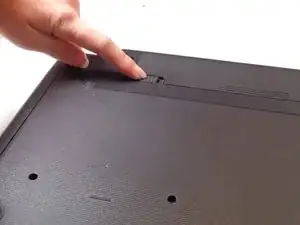

Slide and hold the the left tab to the left to release the battery from the unit.
-

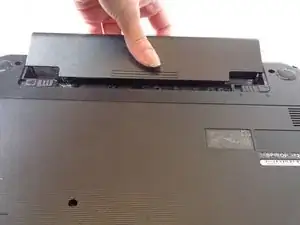

Finally, remove the battery by sliding it away from the unit and yourself.
-
-
-

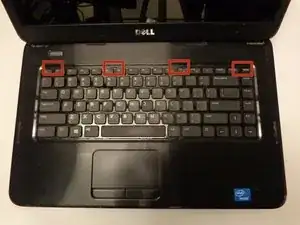

Locate the four tabs along the top edge of the keyboard.
-
Using the spudger, push the tabs away from the keyboard and pull the keyboard up away from the laptop.
-
-
-

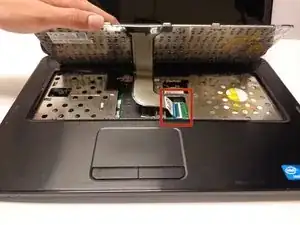

Carefully lift the board up and locate the connecting cable.
-
Gently pull the end of the cable free from the port on the laptop.
-
To reassemble your device, follow these instructions in reverse order.
