This repair process involves going into the computer, therefore,you will need to be gentle with electronic components. Also, consider working on this repair in a clean environment so no small pieces of the computer are lost.
Werkzeuge
Ersatzteile
-
-
Turn off notebook
-
Set the notebook upside down with the battery facing away from you.
-
Locate the unlock and release sliding tabs on the bottom right and left hand corners of the battery respectively.
-
-
-
Slide the right tab to the right to unlock the battery.
-
Slide and hold the the left tab to the left to release the battery from the unit.
-
Finally, remove the battery by sliding it away from the unit and yourself.
-
-
-
Locate the four tabs along the top edge of the keyboard.
-
Using the spudger, push the tabs away from the keyboard and pull the keyboard up away from the laptop.
-
-
-

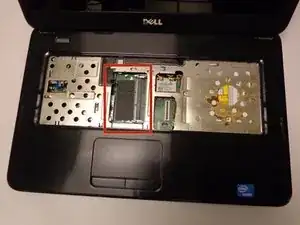

Carefully lift the board up and locate the connecting cable.
-
Gently pull the end of the cable free from the port on the laptop.
-
-
-

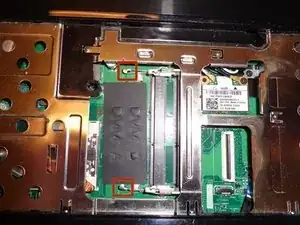

There are two connecting pins for the lower chip.
-

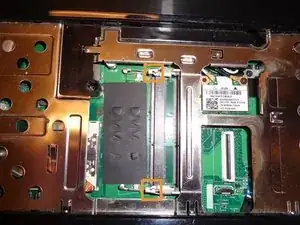

There are two connecting pins for the upper chip.
-
Pull the pins away from the sides of the chip(s) to release it.
-
To reassemble your device, follow these instructions in reverse order.
