Dell Inspiron 3521 CMOS Battery Replacement

Geschrieben von: Victoria Rivera
  • Kommentare: 0
Dell Inspiron 3521 CMOS Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

21

Zeitaufwand

30 - 45 Minuten

Einleitung

Access the motherboard to replace the CMOS battery if your computer is having issues tracking the date and time. It is recommended to wear an anti-static wrist strap to avoid damaging the electronic components of the computer.

  1. Wl1LLiQIOfuQiOSm
    Wl1LLiQIOfuQiOSm
    mHymrHgowJlZWF6e
    FS1jyIfmRMcyGq6a

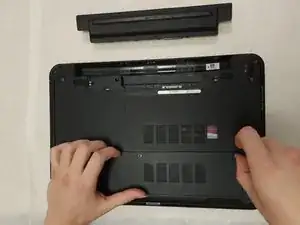

    • Make sure laptop is turned off and unplugged.

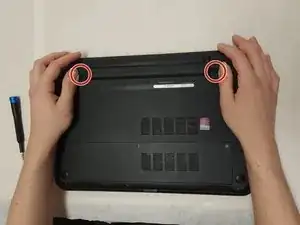

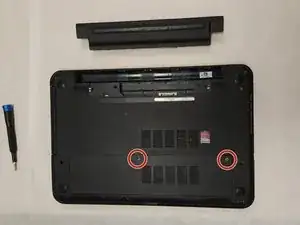

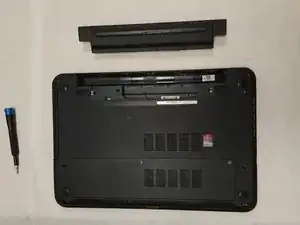

    • Turn over the laptop, and push in the clips to take out the battery.

  2. xPDZPNMPI5vDNQDp
    xPDZPNMPI5vDNQDp
    cckYqWulPPfLmVX2
    OniZTBlMEPoCrfm3

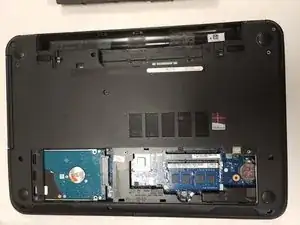

    • Remove the screws to take off the surface cover.

    • Make sure to keep small screws organized in Step 2 and all subsequent steps to make reassembly easier.

  3. 22nYWTJNSFf2LxRy
    22nYWTJNSFf2LxRy
    N4PYSOV6TPwWmBBL
    5HGNPDfDggJLT4JN

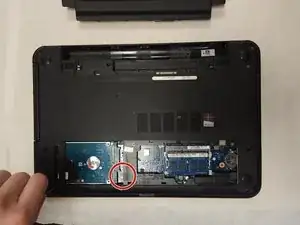

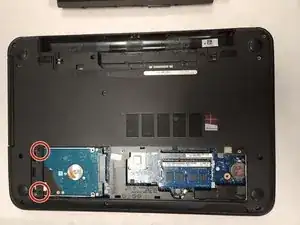

    • Remove screws securing the hard drive

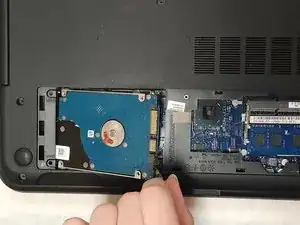

    • Remove hard drive by pulling on the tab to slide it out.

  4. pVpt42M2BMYIHJqZ
    pVpt42M2BMYIHJqZ
    HtpuQH6oGaKtxKsT
    VLJZ6S1V1FZkgptT

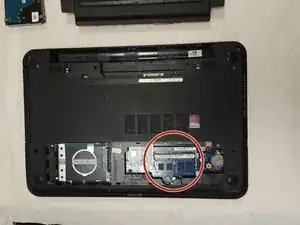

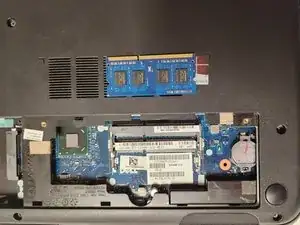

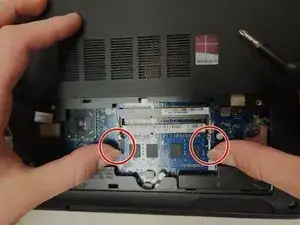

    • Remove the memory card by pressing on the latches on either side.

  5. EsPLGslSEqUNJ4oE
    EsPLGslSEqUNJ4oE
    so2GntS1fdIsQgcQ

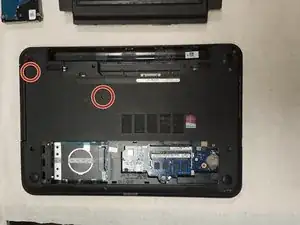

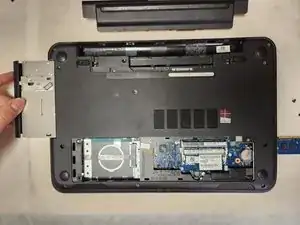

    • Remove the screws securing the optical drive, then slide out the optical drive.

  6. Kmxw3tBKcwe1IEru

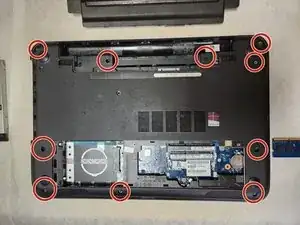

    • Remove all remaining screws on the back.

  7. tQpMRPT1DxDPIdZM
    tQpMRPT1DxDPIdZM
    6baTBeUwYYNDUdQE
    agFS1HD4LL2uTVsV

    • Turn computer over and open it.

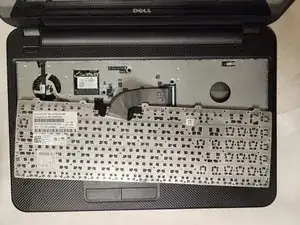

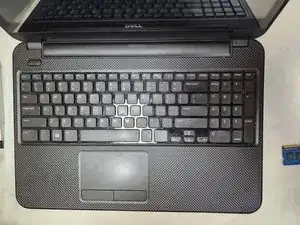

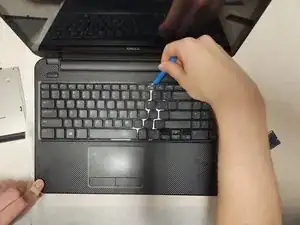

    • Carefully pry off keyboard using spudger.

    • Be careful not to damage ribbon cable while removing the keyboard.

  8. MBdbHOGsSQaQWf5b
    MBdbHOGsSQaQWf5b
    3MLCqJArnNkZuyOQ
    jgd1LoohjpNpXLU4

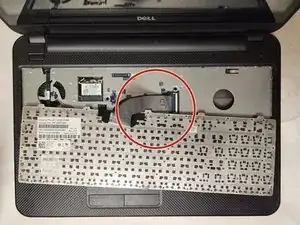

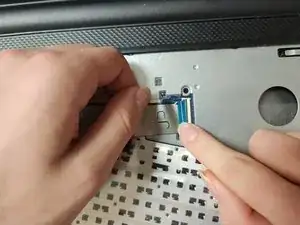

    • Remove the ribbon cable by pulling up on the tab where it is attached, then slide it out.

  9. LqxJcY5Kh2Mvh6nW
    LqxJcY5Kh2Mvh6nW
    FiOcFu5xnsNRQSQE
    oqrAAofaSyIWKHhu

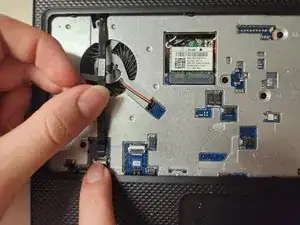

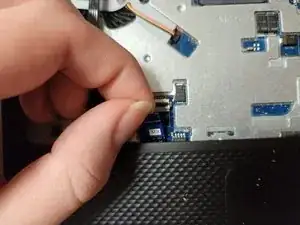

    • Unplug the smaller ribbon cable by pulling up on the tab where it is attached, then slide it out.

  10. AALhKO2Et6YFZZrL
    AALhKO2Et6YFZZrL
    wqExdJDh2ui4OrqE
    tpaAHOYh4o4HKWY5

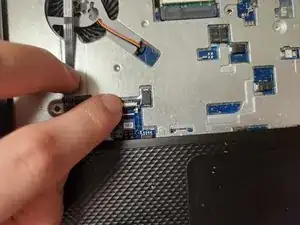

    • Unplug the motherboard cable by pulling up on the tab where it is attached, then slide it out.

  11. ss1yMLXGraMt3nUd

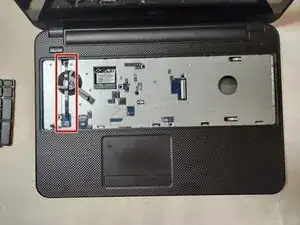

    • Remove all screws from palm rest

  12. QcrReQlMRMAIpOfe
    QcrReQlMRMAIpOfe
    WyIxHXdSCgJAKG6I
    IbljhaquFaHvlQbS

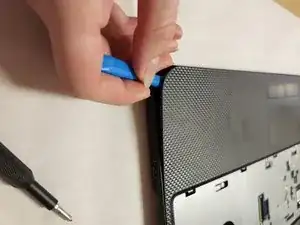

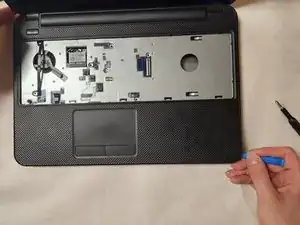

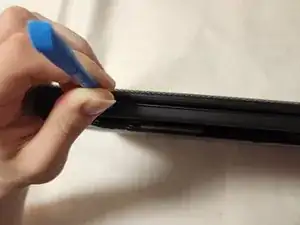

    • Remove palm rest by carefully prying it off with a spudger.

  13. SxJoxwTinyVCQb1w
    SxJoxwTinyVCQb1w
    NSMF3YXISeo24HMl

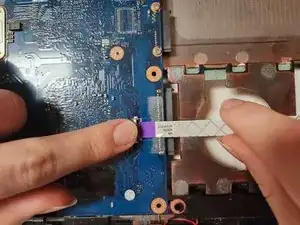

    • Unplug the white ribbon cable by pulling up on the tab where it is attached, then slide it out.

  14. wLf3xp236pgh3V2C
    wLf3xp236pgh3V2C
    OrCt3ejKMFPjS5E3
    oXewRQ1PpErUIoRU

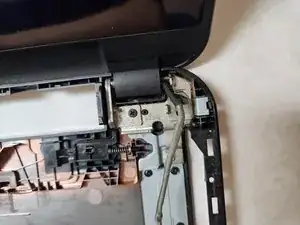

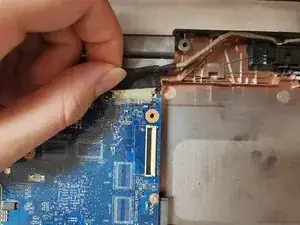

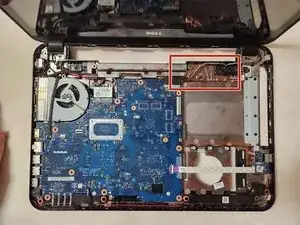

    • Gently pull out the connecting cable.

  15. OLcaXvFMP2CVtgct
    OLcaXvFMP2CVtgct
    CsYboJ1suf2yWHtk

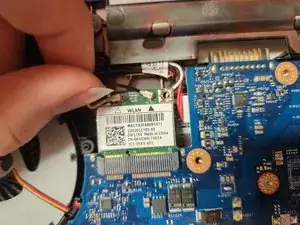

    • Unplug the black and white cables connected to the Wi-Fi chip.

  16. A6oS2wujBlrhIOmp
    A6oS2wujBlrhIOmp
    SnktfRSe1OkxMVdw

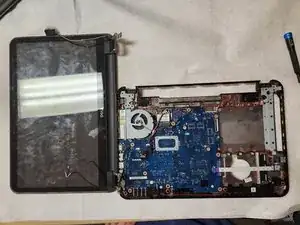

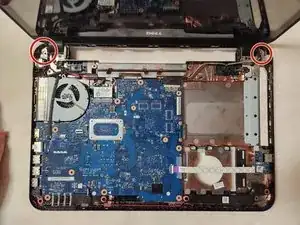

    • Disconnect screen by removing all remaining screws.

  17. dOPRWPCAE43ZlWXJ
    dOPRWPCAE43ZlWXJ
    ap4nivgwATbRJMp4

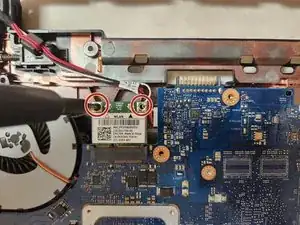

    • Remove screws securing the Wi-Fi chip, then remove Wi-Fi chip.

  18. yZ5IdIXWE1IZlhal
    yZ5IdIXWE1IZlhal
    wTjBQHPntrSVr1PQ

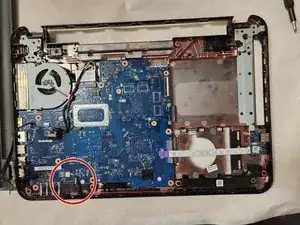

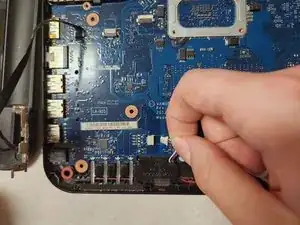

    • Locate and disconnect connecting cables on motherboard.

  19. yg2DL1bIoSbZ2TLD
    yg2DL1bIoSbZ2TLD
    5jEFCxRuNwSAYUDf

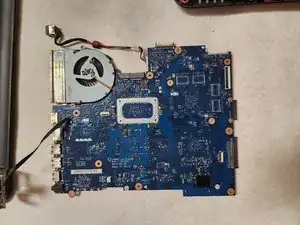

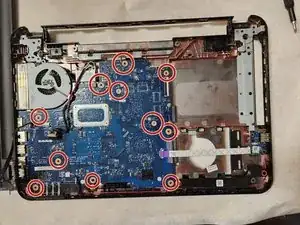

    • Remove the remaining screws securing the motherboard to remove it.

  20. VrqsnmsLJdM1MiWw
    VrqsnmsLJdM1MiWw
    LWyarYDeYoipIDsD
    dRjLpypGECmxjXTd

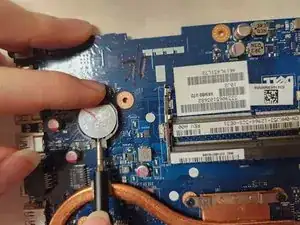

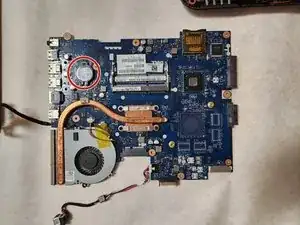

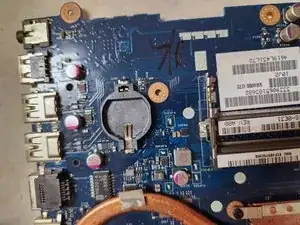

    • Flip over motherboard and locate CMOS battery

    • Pry off battery with spudger.

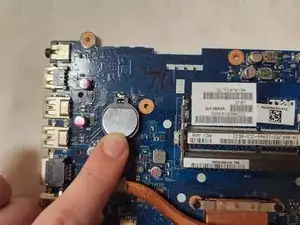

  21. PmtTTynCnVRJmRFL
    PmtTTynCnVRJmRFL
    xcopJkHMrwuYWmNH

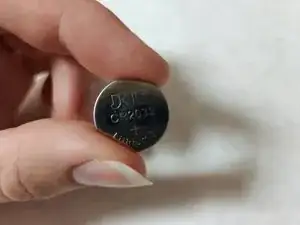

    • Place new CMOS battery in motherboard.

    • Repeat all steps backwards to reassemble computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
