Follow these steps to disassemble the computer, access the heat sink, and replace the part.

  1. R6purqsSwAAvAgeb
    R6purqsSwAAvAgeb
    GPfatbb4tylgGT3K

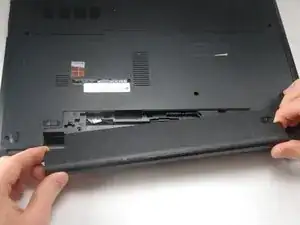

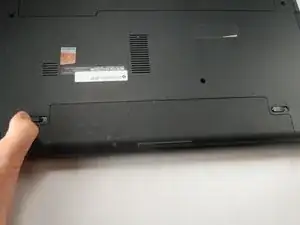

    • Slide the latches on both sides of the computer outward to unlock the battery.

    • Remove the battery from the computer.

  2. jOFtjDmIrZUAfUJL
    jOFtjDmIrZUAfUJL
    KWGMNWnl2xIYJTc6

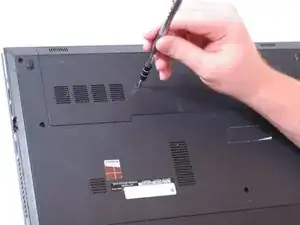

    • Remove the screw. (1x M2 x 3mm)

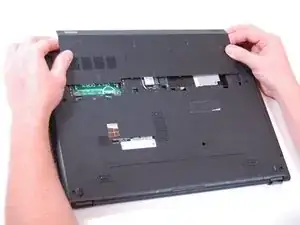

    • Slide down the access door and remove it.

  3. pbX5a6fOODpcIfiP
    pbX5a6fOODpcIfiP
    luUljnUfIuKVUdRf
    Npcb1bTLPLOM3Zg2

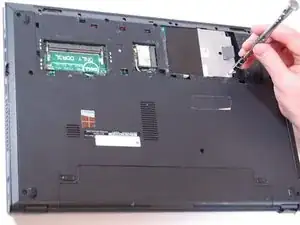

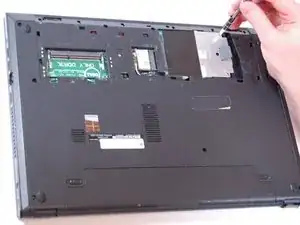

    • Remove the screw. (1 x m2 x 3mm)

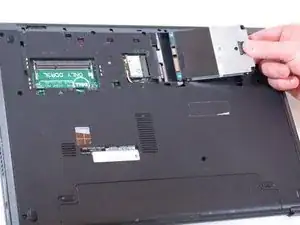

    • Move the hard drive to the open area and remove it.

  4. McVyXZBG4QopWy1t
    McVyXZBG4QopWy1t
    MTSR4wq6VQPmwCTy
    dlkucHqsseNApaG6

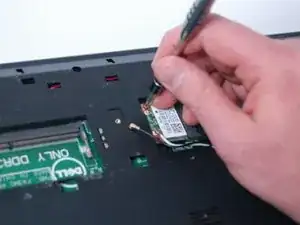

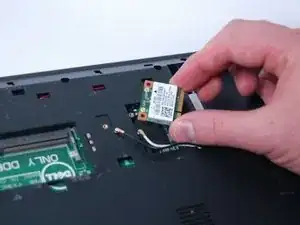

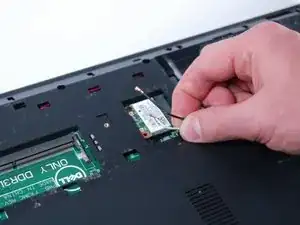

    • Unplug the black and white antenna cables from the wireless card.

    • Remove the screw. (1 x M2 x 3mm)

    • Remove the wireless card from the laptop.

  5. QT16foBy2wqXyXwb
    QT16foBy2wqXyXwb
    OyyZytAbkT4BAkZe
    rdLtMVhZ6e4RhNmg

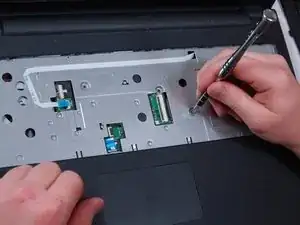

    • Turn over the laptop and open it.

    • Use the plastic prying device to release the keyboard.

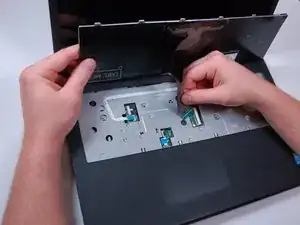

    • Lift the keyboard.

    • Unplug the cable connecting the keyboard to the laptop.

    • Remove the keyboard.

    • Remove the screws. (3 x M2.5 x 5mm)

  6. GbewviA4fGaKspHG
    GbewviA4fGaKspHG
    FVkX2LPFWSSukCdS

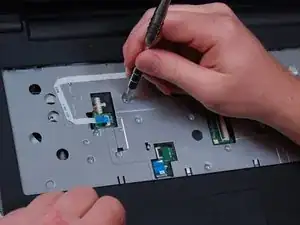

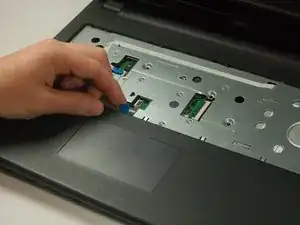

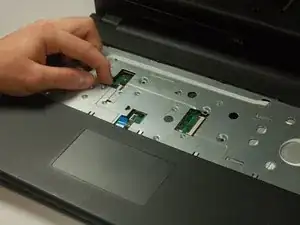

    • Unplug the touch pad cables located on the palm rest.

  7. rtWHsTY3ZU3WXNvS
    rtWHsTY3ZU3WXNvS
    XpsDIKhnPTalLOhe
    EcuBKTpUmJGJD6CD

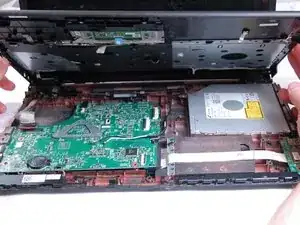

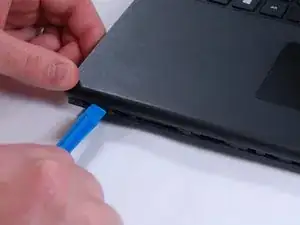

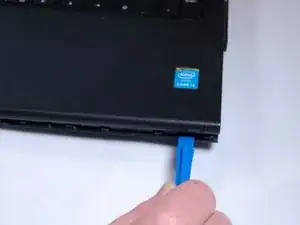

    • Carefully unsnap the palm rest from the rest of the laptop.

    • Remove the palm rest.

  8. U1f5FZDMcFYfvpfG

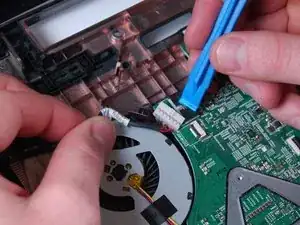

    • Unplug the cable that connects to the motherboard.

    • Remove the DC jack from the laptop.

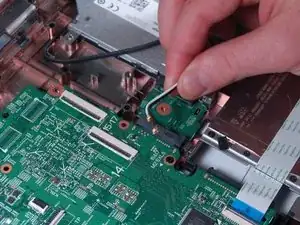

  9. SIHHF4s5SBwewicc
    • Loosen the cables on the antenna.

  10. shKNdRBpcDmNInnt

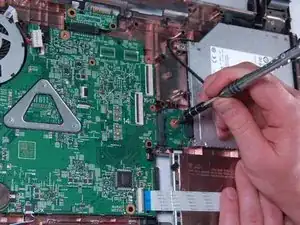

    • Remove the screws. (1 x M2 x 3mm)

    • Unplug the circuit board from the rest of the computer.

  11. gUhHehGAWe141vFO
    gUhHehGAWe141vFO
    Qpp56VD5lGiMPdGx

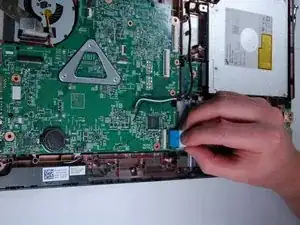

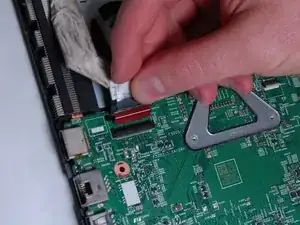

    • Loosen the tape on the left side of the laptop.

    • Unplug the display cable.

  12. b3oEKfpDIYftnkIP
    b3oEKfpDIYftnkIP
    uFeoghqOrHqJglL5
    F6QNvYMDxHdOGCgg

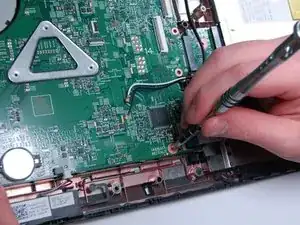

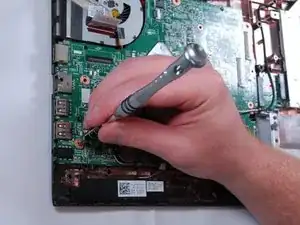

    • Unplug the cable on the bottom part of the mother board.

    • Remove the screws. (3 x M2.5 x 5mm)

    • Remove the motherboard from the laptop.

  13. DpZvEXTBOfYRFWbK
    DpZvEXTBOfYRFWbK
    WgmrRscsTZx3yCWP
    iZMosQqlZAcDLHiu

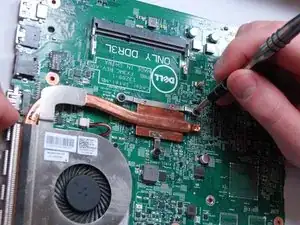

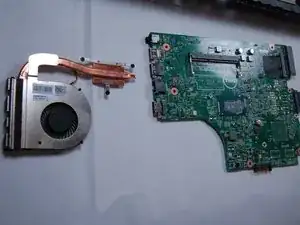

    • Turn over the motherboard.

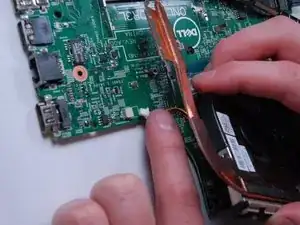

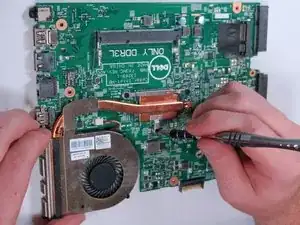

    • Unplug the cooling fan.

    • Loosen the 3 screws from the heat sink.

    • Remove the heat sink.

Abschluss

To reassemble your device, follow these instructions in reverse order.
