Dell Inspiron 5100 PP07L Keyboard Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

10 Minuten

Einleitung

You will be removing the keyboard to either replace or access various parts of the laptop.

  1. U5oPJkNEWrEXNYs5

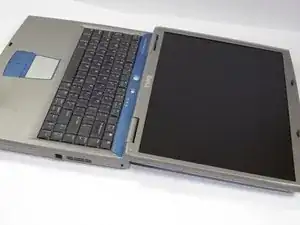

    • Remove battery

    • Open screen so that it lies flat.

  2. GwBGVv3gh5CCV1rm
    GwBGVv3gh5CCV1rm
    YtDpuIL3OZM5S3Qt

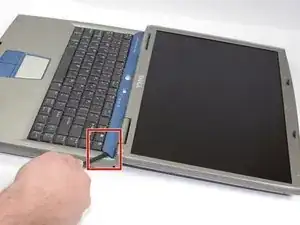

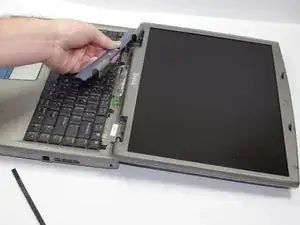

    • Starting from the right side of the hinge cover, use the flat end of the spudger to pry up the hinge cover and gently remove it.

  3. cHFclHIIkIRAnb2P
    cHFclHIIkIRAnb2P
    VVHTX2toMDf6NQu6

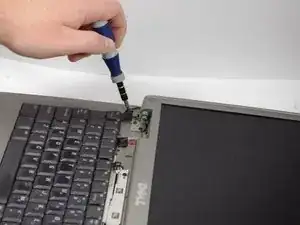

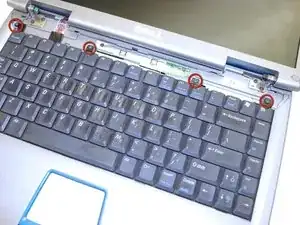

    • Using a Phillips screwdriver remove the four M2 x 3-mm screws holding in the keyboard.

  4. Z1gGwMhOrbUkTK2E

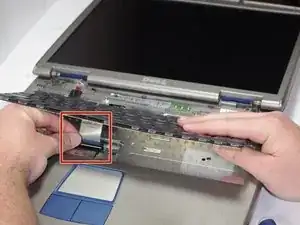

    • Lift keyboard and detach the interface connector.

    • Take extra care when removing and handling the keyboard. The key caps on the keyboard are fragile and easily come off.

Abschluss

To reassemble your device, follow these instructions in reverse order.
