Dell Inspiron 530 DCMF Bios Battery Replacement

Geschrieben von: Drew Cunningham
  • Kommentare: 0
Dell Inspiron 530 DCMF Bios Battery Replacement

Schwierigkeitsgrad

Very easy

Schritte

2

Zeitaufwand

5 Minuten

Einleitung

Replacing a BIOS battery is a quick and easy fix. This guide will show how to open the case and replace the battery inside.

  1. CSUw3SrtSpFWtsqK
    CSUw3SrtSpFWtsqK
    aOIYAyrFiZUFpScH

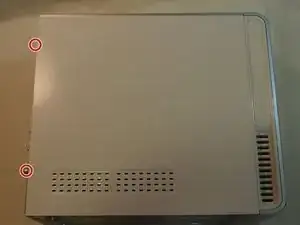

    • Unscrew the two highlighted screws in this image

  2. 5c5HmUnXhiyyeaVo
    5c5HmUnXhiyyeaVo
    TDUdPRRQK2NIIXLv
    2nSsmXfIwOM4jpbl

    • With both screws removed, slide the side panel toward the back of the computer to open the case.

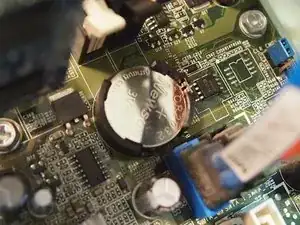

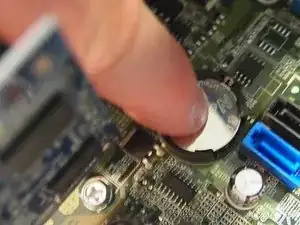

    • The BIOS battery has to be removed properly to avoid damaging the motherboard. Using either your fingers or a spudger, press the small metal tab securing the battery to remove it

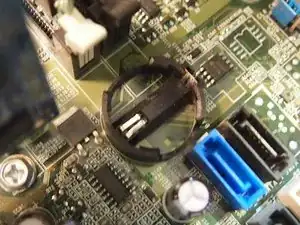

    • Insert a new battery, reattach the side panel, and you've successfully replaced the BIOS battery.

Abschluss

To reassemble your device, follow these instructions in reverse order.
