Dell Inspiron 530 DCMF PCI Slot:Dial up modem Replacement

Geschrieben von: Drew Cunningham
  • Kommentare: 0
Dell Inspiron 530 DCMF PCI Slot:Dial up modem Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

10 - 15 Minuten

Einleitung

The PCI slot can hold many different types of cards, such as a dial up modem, wifi receiver, or bluetooth.

  1. 4oca3YsBEXxyouOZ
    4oca3YsBEXxyouOZ
    rOAu3wZZAtJJY3Wx

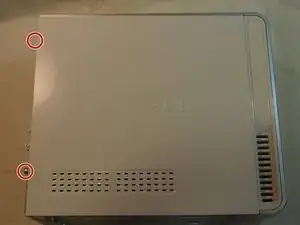

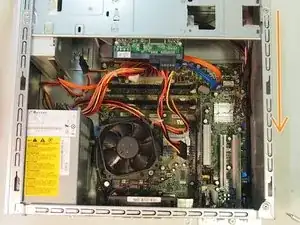

    • Unscrew the two large screws in the back holding on the side panel.

    • Slide the panel backwards to remove it.

  2. EPvFUrSOYdyaIJrp
    EPvFUrSOYdyaIJrp
    COAwDoDFIGqkvmHC
    IvyvHy1tMeN6EnsM

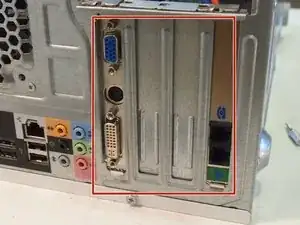

    • The PCI slots are located at the bottom back of the computer.

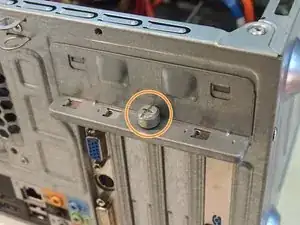

    • Unscrew the screw to release the metal piece that holds the cards in place.

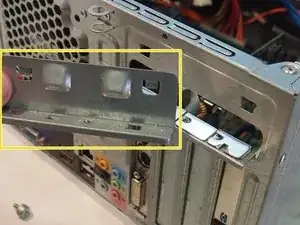

    • Remove metal piece.

  3. hTOdfnPemUxF32XE
    hTOdfnPemUxF32XE
    obqBkndjnDoFLqDB

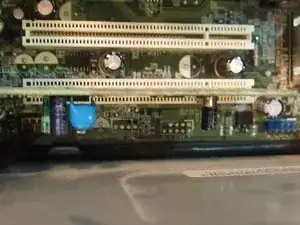

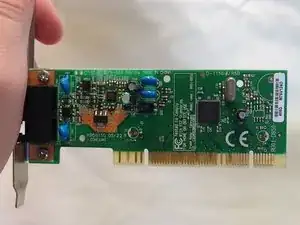

    • Slide the card in the PCI slot up and out.

    • In this case, it is a dial up modem.

  4. vyVebxDxMAYZSLJq
    vyVebxDxMAYZSLJq
    ArM12CqWCb1oQAqq
    dFLvvZCfYRYSNTFB

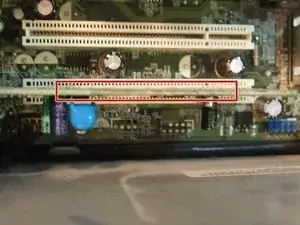

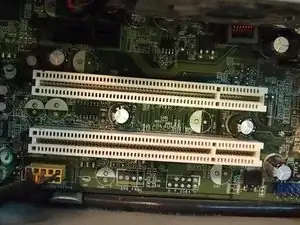

    • Take the new card and slide it into the slot that you removed the old one out of.

    • Remember to replace the metal piece you removed earlier to secure the cards in place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
