Dell Inspiron 530 RAM Replacement

Geschrieben von: faisal
  • Kommentare: 0
Dell Inspiron 530 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

2 - 3 Minuten

Einleitung

This guide will demonstrate removing the computer's RAM.

  1. NwGYw6d1vHDha66L

    • Place the case on its side.

    • Locate and remove the two 13.1 mm thumbscrews.

  2. GLsbDn3OLp1TxP1O

    • Slide the side panel towards the back and remove.

  3. UgUHnHrZVdiVPZpb

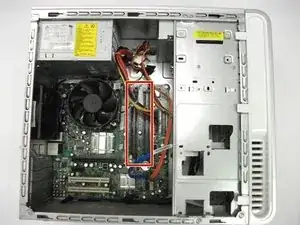

    • Locate the four sticks of RAM.

  4. ZZUK5FXMBY6BpTFw

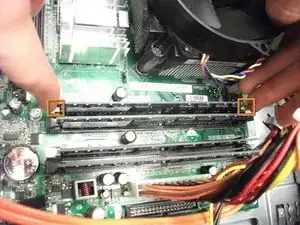

    • Locate the two plastic tabs on the ends of a RAM stick.

    • Press down on the two tabs together until RAM stick is ejected.

Abschluss

To reassemble your device, follow these instructions in reverse order.
