Dell Inspiron 531 Graphics Card Replacement

Geschrieben von: Scott Havard
  • Kommentare: 0
Dell Inspiron 531 Graphics Card Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

5 - 10 Minuten

Einleitung

Are you trying to enhance your Dell Inspiron's graphics capabilities? Use this guide to replace your graphics card and let the visual splendor begin.

  1. PoyiUoLI14epNHxp
    PoyiUoLI14epNHxp
    GGVoXeYhW45x41Ju

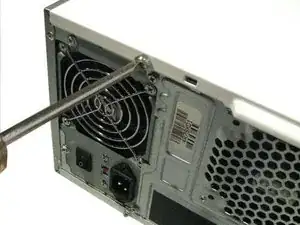

    • Place the desktop on its side. Make sure to place the computer on a soft but firm surface.

    • Locate and remove the two screws that secure the side panel to the desktop:

    • Two 1/4" Phillips/slotted combination screws.

  2. UT1coAsjxGruZDBA

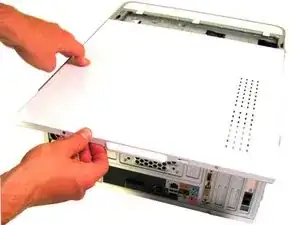

    • Slide the side panel towards the back of the desktop in order to remove it.

  3. c2c6ovh2s5JSIXcD
    c2c6ovh2s5JSIXcD
    XsRHhhAlYLTnPjaE

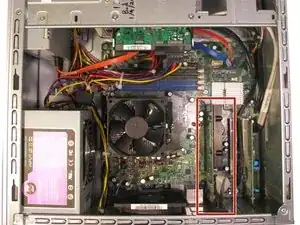

    • The graphics card is attached to the back of the desktop.

    • The graphics card is located below the three fans.

  4. 5QQsxNKtLHi3ahWD

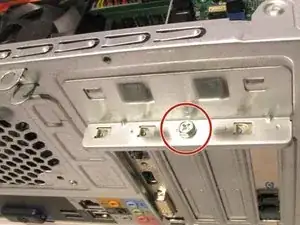

    • Remove the screw that secures the support bracket:

    • One 1/4" Phillips screw

  5. 2JqZ2Yc2hdpITJKV
    2JqZ2Yc2hdpITJKV
    mOPNKYHhDqX4ugOf

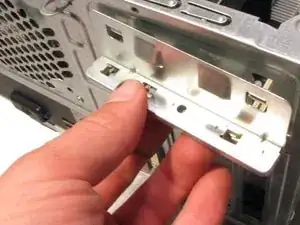

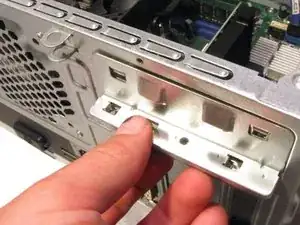

    • Remove the support bracket by lifting up and out.

    • There are tabs that hold the bracket in place, therefor lifting up is an important detail.

  6. GhFZJVQMGygYiQLR
    GhFZJVQMGygYiQLR
    1PP1lMBRjBuVlHSV

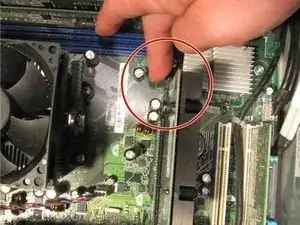

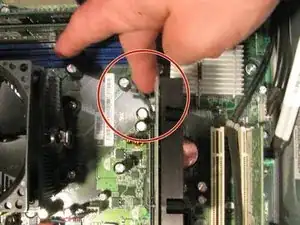

    • Locate the push tab that locks the graphics card into place.

    • Push the tab away from the graphics card and towards the fan.

    • Hold the tab in this position through step 7.

  7. Gf2tqCFXClglYnTs
    Gf2tqCFXClglYnTs
    ZTX1koGyvZIxNJCO

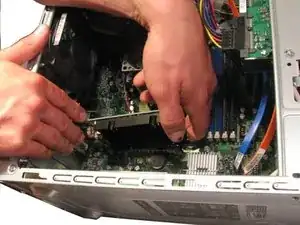

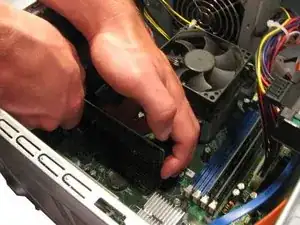

    • Keep the tab pushed away from the graphics card (see Step 6).

    • Gently lift the graphics card up and out of the desktop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
