Dell Inspiron 5379 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

15 - 30 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Battery.

  1. MoJWuClZHOqWGyM1

  2. rNjS5NYPm1GHVxRn

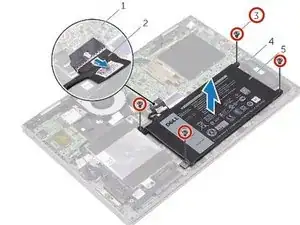

    • Remove the four screws (M2x3.0) that secure the battery to the palm-rest assembly.

  3. PEiW1YB13JYCSTHe

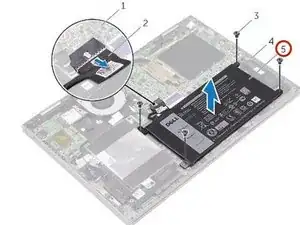

    • Lift the battery off the palm-rest assembly.

    In my case, there was a (keyboard?) ribbon cable glued/stuck to the bottom of the battery.

    I had to carefully lift it at an angle a blast it with a hair dryer for a while until it loosened.

    Roman -

  4. CDbS3aVdot6pkghG

    • Press and hold the power button for five seconds to ground the system board.

  5. AqfIbOlfJqwONlKR

    • Align the screw holes on the NEW battery with the screw holes on the palm-rest assembly.

  6. EKObsMH61hpqoVHD

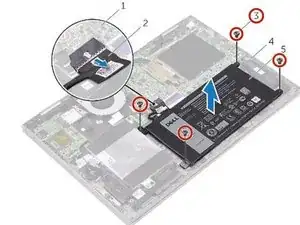

    • Replace the four screws (M2x3.0) that secure the battery to the palm-rest assembly.

  7. PnWRp6ZSNpBIWfGQ

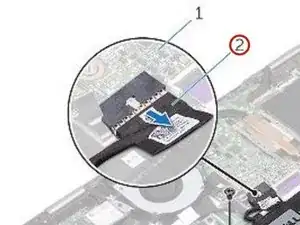

    • Connect the battery cable to the system board.
