Dell Inspiron 5379 Hard Drive Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 5379 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

14

Zeitaufwand

15 - 40 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Hard Drive.

  1. ieY2D3DP5NIbfqCK

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

    • CAUTION: Hard drives are fragile. Exercise care when handling the hard drive.

    • Peel off the tape that secures the hard-drive cable to the palm-rest assembly.

  2. pyfBSkQc6c4Y55kN

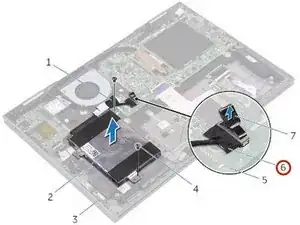

    • Using the pull tab, disconnect the hard-drive cable from the system board.

  3. GO5LIbqIvomdgJZ5

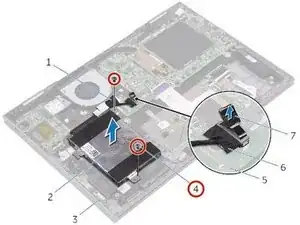

    • Remove the two screws (M2x3.5) that secure the hard-drive assembly to the palm-rest assembly.

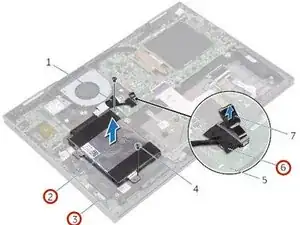

  4. IVIAMfLoNMN26RYO

    • Lift the hard-drive assembly, along with its cable, off the palm-rest assembly.

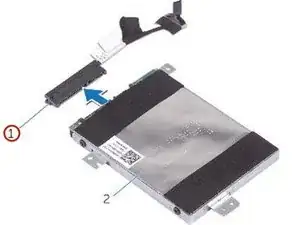

  5. JjhcEgIwXWoOqjwH

    • Disconnect the interposer from the hard-drive assembly.

  6. ym5vCkAdrnNLjXOy

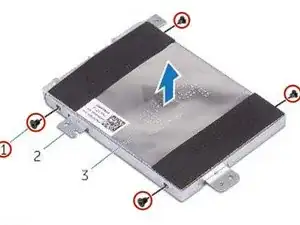

    • Remove the four screws (M3x3) that secure the hard-drive bracket to the hard drive.

  7. Gh1aEHX3NWTxe62q
    Gh1aEHX3NWTxe62q
    4UtRrHMwbCNkcTZq

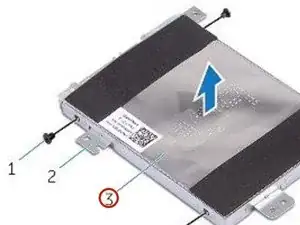

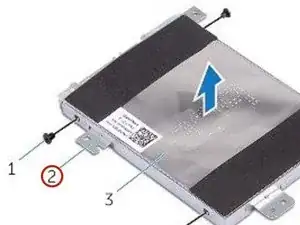

    • Lift the hard-drive bracket off the hard drive.

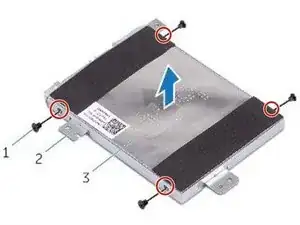

  8. 3LmJPjLeMMHKfdKi

    • Align the screw holes on the NEW hard-drive bracket with the screw holes on the hard drive.

  9. FaXMTl2u5NY2YaXk

    • Replace the four screws (M3x3) that secure the hard-drive bracket to the hard drive.

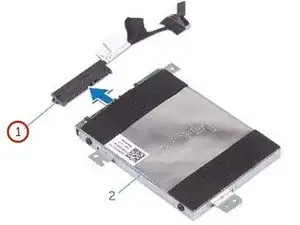

  10. DJvlujDidoN4O4vw

    • Connect the interposer to the hard-drive assembly.

  11. ijubkIA6BaHtGeoD

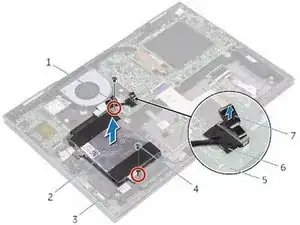

    • Align the screw holes on the hard-drive assembly with the screw holes on the palm-rest assembly.

  12. EpIvwPHsaybUFABP

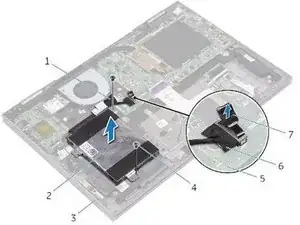

    • Replace the two screws (M2x3.5) that secure the hard-drive assembly to the palm-rest assembly.

  13. xRkkSBG2RqfSFR5l

    • Connect the hard-drive cable to the system board.

  14. PKTdyb1lOuFOjqvQ

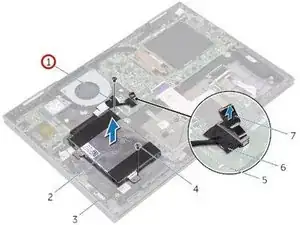

    • Adhere the tape that secures the hard-drive cable to the palm-rest assembly.
