Einleitung

In this guide, we will show you how to remove and replace the Memory Modules.

  1. HskqMPtte3p3b35g
  2. tIyZsOtgkaYO122D
    tIyZsOtgkaYO122D
    p31xuBvMnZVf4KBK
    qiWsuoAYGsvKmCFl

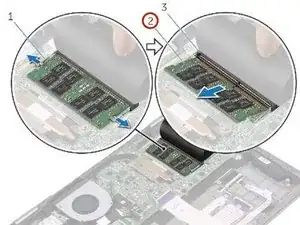

    • Use your fingertips to carefully spread apart the securing-clips on each end of the memory-module slot until the memory module pops up.

  3. eTRARxcMJKLTf3wb

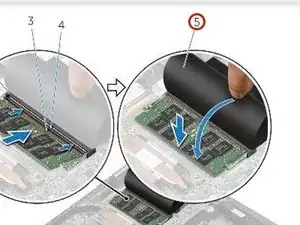

    • Lift the Mylar to access the memory-module slot.

  4. fIKSJUoILrUZZfaR
    • Align the notch on the memory module with the tab on the memory-module slot.

  5. t3YgGCtE4DOTYjgU
    t3YgGCtE4DOTYjgU
    2UXJpfBgMNmQFaLE

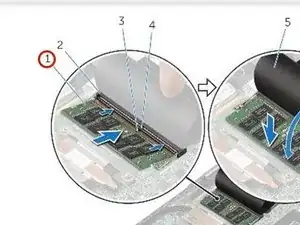

    • Slide the memory module firmly into the slot at an angle and press the memory module down until it clicks into place.

    • NOTE: If you do not hear the click, remove the memory module and reinstall it.
