Dell Inspiron 5555 Keyboard Replacement

Geschrieben von: Jahnavi Pathak

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

5 Minuten

Einleitung

If your keyboard does not respond to your actions use this guide to replace the keyboard part of your laptop.

Before using this guide inspect the battery life, typically the battery drains the power fast and it may also cause the loss of keyboard power.

Step one-three shows you how to replace the battery.

Before beginning, make sure to power off your laptop completely and disconnect from any external power source.

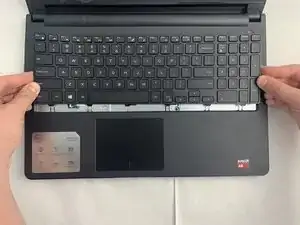

Turn the laptop over and open the device.

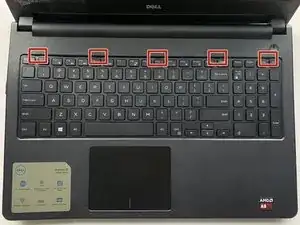

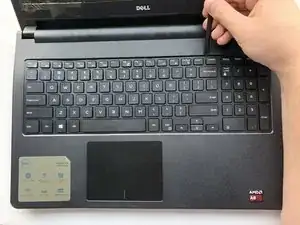

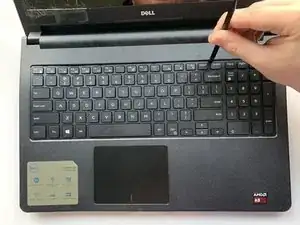

Insert the flat end of the spudger into the five notches located at the top of the keyboard and pry the keyboard up by pushing down and up.

Make sure to use end punctuation on all steps.

How should the user lift the keyboard? Why use a screwdriver to pry?

Should there be a note here about how much to move the keyboard? Will yanking it up damage the device?

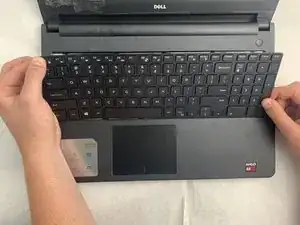

Lift up and slide back to release the six notches from the bottom of the keyboard.
Be careful not to lift the keyboard up all the way because it is still connected to the laptop by a cable on the bottom.

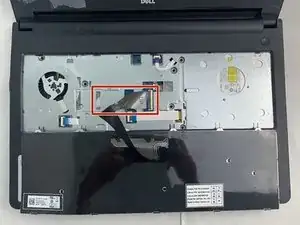

Flip the keyboard upside down to access the keyboard cable.

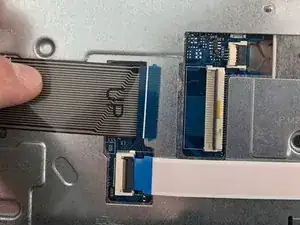

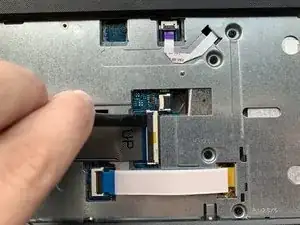

Using the flat end of the spudger, flip the black tab securing the keyboard cable up to remove the keyboard cable.
Remove the keyboard by lifting it off of the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
