Dell Inspiron 5555 Motherboard Replacement

Geschrieben von: Marek Czyzycki Jr.

Kommentare: 14

Dell Inspiron 5555 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

20 - 30 Minuten

Einleitung

If your Dell Inspiron 5555 will not power on or charge, you may need to replace your motherboard. This guide will give you specific instructions on how to achieve this task.

With respect to the laptop turning on, the motherboard contains components that control power supply to the laptop.

Before attempting to replace the motherboard, you may want to consider that your laptop is not powering on due to a faulty power adapter or battery.

Do not forget to turn off your device completely and make sure it is not connected to any power adapters.

Werkzeuge

Schritt 1

Close the laptop and lay it flat, logo side down.
Make sure that the battery is visible and at the top of the device.

Schritt 2

Push the lock switch to the left to pop out the battery.

Schritt 3

When the battery pops out, lift it so that it comes out completely.

Schritt 4

Turn the laptop over and open the device.
Insert the flat end of the spudger into the five notches located at the top of the keyboard and pry the keyboard up by pushing down and up.

Make sure to use end punctuation on all steps.

Alex Watkins - 25/10/19

How should the user lift the keyboard? Why use a screwdriver to pry?

Alex Watkins - 25/10/19

Should there be a note here about how much to move the keyboard? Will yanking it up damage the device?

Alex Watkins - 25/10/19

Schritt 5

Lift up and slide back to release the six notches from the bottom of the keyboard.
Be careful not to lift the keyboard up all the way because it is still connected to the laptop by a cable on the bottom.

Schritt 6

Flip the keyboard upside down to access the keyboard cable.
Using the flat end of the spudger, flip the black tab securing the keyboard cable up to remove the keyboard cable.
Remove the keyboard by lifting it off of the laptop.

Schritt 7

Remove the six 5 mm screws using the Phillips #0 screwdriver.
Use the spudger to lift the black tab of the ZIF connector, removing the optical drive cable.

Schritt 8

Using the hooked end of the Halberd Spudger, pull the black tab to the left to expose the touchpad cable.
Close the laptop and flip it over, so the bottom is facing up.

Schritt 9

Remove the 5 mm screw using the Phillips #0 Screwdriver.
Use the flat end of the spudger to slide the optical drive out to the left at the screwdriver push point.

Schritt 10

Pull the optical drive horizontally to the left to remove it from the laptop.

Schritt 11

Remove the two 8 mm screws with the Phillips #0 Screwdriver.
Use the iFixit opening tool to pry open the access door by pushing down and up at the notch on the top of the access door, running it along the edges.

How can I pry open the access door?

Alex Watkins - 25/10/19

Schritt 12

Use the flat end of the spudger to lift the white tab up that holds the hard drive cable in place.
Remove the four 8 mm screws with the Phillips #0 screwdriver.
Lift the hard drive from the laptop.

The halberd spudger or spudger? You use both in the tools. Make sure to check all tool lists.

Alex Watkins - 25/10/19

Schritt 13

Remove the 3 mm screw on the wireless card with a Phillips #0 screwdriver.
Lift the metal bracket to remove.
Detach the antenna cables at the gold metal end by carefully pulling them up from the Wireless WLAN Card.
Lift the Wireless WLAN Card from the device.

For screws, use circles for markup. How should the user detach the antenna cables? How can the WLAN card be removed? “remove” is an appropriate verb when there’s one way to do it (e.g., screws), but not as helpful when the action isn’t as intuitive.

Alex Watkins - 25/10/19

Schritt 14

Remove the three 2 mm wafer screws in the optical drive port with the Phillips #0 screwdriver.
Remove the two 8 mm hinge screws with the Phillips #0 screwdriver.
Remove the three 5 mm screws from the battery opening with the Phillips #0 screwdriver.
Remove the 5 mm screw with the Phillips #0 screwdriver.

Schritt 15

Remove the six 8 mm screws under the access door using the Phillips #0 Screwdriver.
Disconnect the speaker connection by using your fingers and carefully pulling it to the right.
It may be snug in the connector, so gradually use more force until the speaker connection disconnects.

Do you have the last shot zoomed out more to give perspective? As is, the tool is blurry, which makes the action difficult to see. Also, can you make the last step clearer?

Alex Watkins - 25/10/19

Schritt 16

Using the flat end of the spudger, pry the bottom base off of the laptop by the crack around the perimeter of the laptop and running the spudger around the edges.

Can you clarify how to pry the bottom base off? Are there latches involved? Do you have to run the spudger around the edges?

Alex Watkins - 25/10/19

Schritt 17

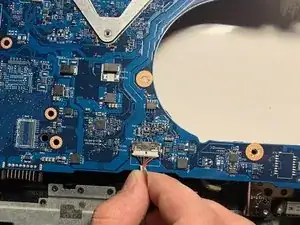

Using your fingers gently pull the fan cable out if its port.
Avoid pulling the fan cable out by the actual wire. Instead pull on the plastic white piece that is attached to the wire.

Do you have a top down view of the laptop? I think since you zoom in significantly, marking up where the fan cable is before getting into it would be helpful. What direction should the fan cable be pushed? Do you have a flipbook style shot? I think you could use a whole step for that action, then have loosen the screws and remove in the next step.

Alex Watkins - 25/10/19

Schritt 18

Loosen the three captive screws attached to the metal bracket of the fan using the Phillips #0 Screwdriver.
The screws should remain attached to the metal bracket by springs.
Carefully lift the fan out of the laptop.

Schritt 19

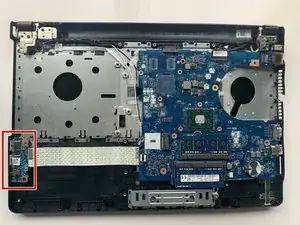

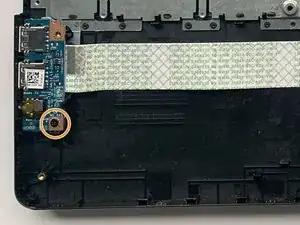

Remove the 5 mm screw from the circuit board using the Phillips #0 screwdriver.

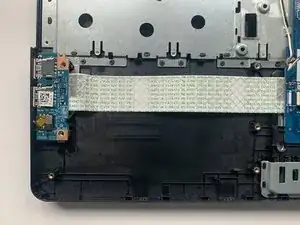

Loosen the circuit by lifting it up from the device.
The white and green cable will remain attached to the circuit board on the left end and attached to the motherboard on the right end.

How should I loosen the circuit? Do you have more images?

Alex Watkins - 25/10/19

Also, consider a wideview with this element marked up.

Alex Watkins - 25/10/19

Schritt 20

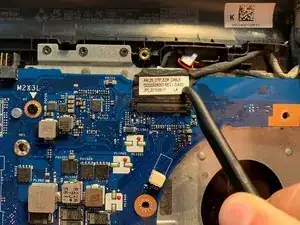

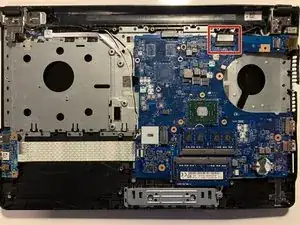

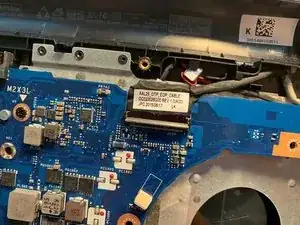

Using the halberd spudger, pull back and up to lift the black tab that holds the LCD cable in place.
Pull the LCD cable out with your fingers.

I think the marked up shot should be zoomed out more to give a stronger sense of where the LCD cable is.

Alex Watkins - 25/10/19

Schritt 21

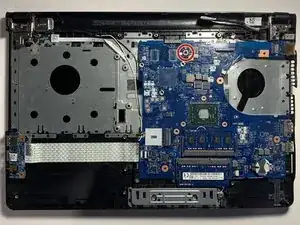

Remove the 3 mm screw using the Phillips #0 screwdriver.

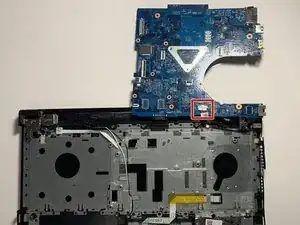

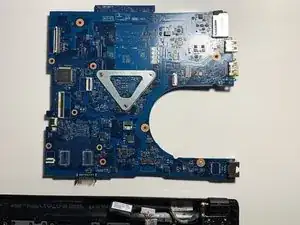

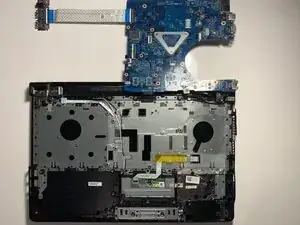

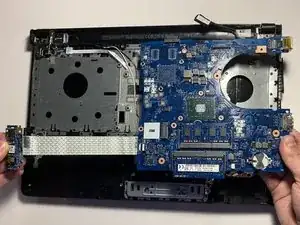

Carefully lift the motherboard and circuit board and turn it over.
The motherboard is still connected to the device so be careful to not yank up on it.

Schritt 22

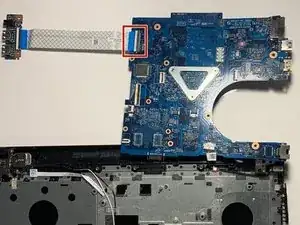

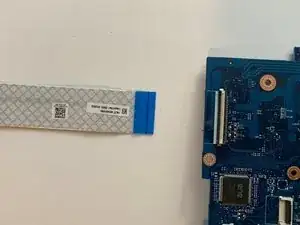

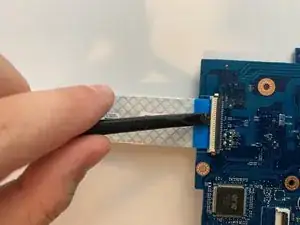

Using the flat end of the spudger, lift the white tab holding the USB circuit board cable attached to the motherboard to detach it from the motherboard.
