Dell Inspiron 6000 DVD/CD Drive Replacement

Geschrieben von: Kenneth Odum
  • Kommentare: 0
Dell Inspiron 6000 DVD/CD Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

3 Minuten

Einleitung

Removing the DVD/CD drive will help to replace a broken or damaged drive.

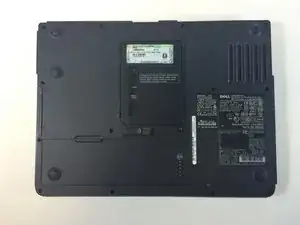

  1. hTNbTd3t2xG2LNyP

    • To prevent injury, make sure the laptop is unplugged before removing the battery.

    • Flip the laptop over, bottom-side up.

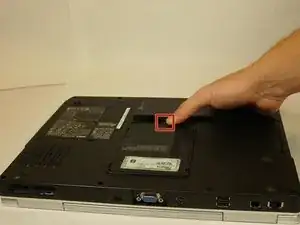

  2. P1UqhtoewIT1DbbO

    • Push the switch next to the battery.

    • At the same time, lift the battery away from the laptop.

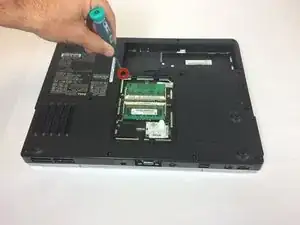

  3. ZeIsBLJNVqDkT2wr

    • Remove one 4mm Philips #00 screw.

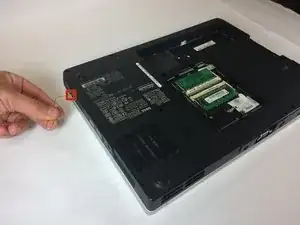

  4. BsFrZ1j3hZrHexaE

    • Open the paperclip as seen here.

    • Insert the paper clip into small hole next to the eject button on the disk drive.

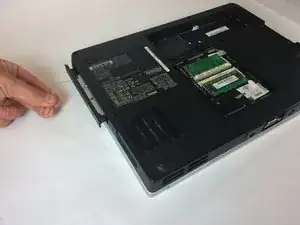

  5. UNDIgRbECDatWy55

    • With slight pressure, push the paperclip into the laptop.

    • The disk drive will slowly "pop out" of the side of the laptop.

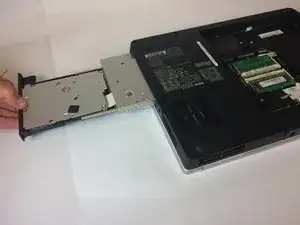

  6. B1PYINGAaAlX51YI

    • Using your hand, pull the disk drive out of the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
