Dell Inspiron 7568 RAM Replacement

Geschrieben von: Elijah Basile
  • Kommentare: 0
Dell Inspiron 7568 RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

3 Minuten

Einleitung

When removing or replacing the RAM of the Dell Inspiron 7568 it is important to make sure the laptop it is unplugged and completely turned off. User should also remember to be careful when unplugging and removing the battery. It is recommended that users keep different screw types separated to keep assembly easier. Make sure to uses a Phillips head #1 screw driver. Make sure to work in a static free area with static protection gloves.

  1. r2LOHF3bklQx5wc1
    r2LOHF3bklQx5wc1
    NZN2shdoLTnmYmEc

    • Remove the ten 7mm Phillips #1 screws on the bottom cover.

    • Remove the bottom cover.

  2. xvH2JJdQyOdVoFSK
    xvH2JJdQyOdVoFSK
    3oJWZuEXtCtLlfBP

    • Remove the four 3mm Phillips #1 screws holding the battery.

    • Unhinge the connector cable to the battery.

    • Remove the battery.

  3. BaDJxLiykusHV6GL

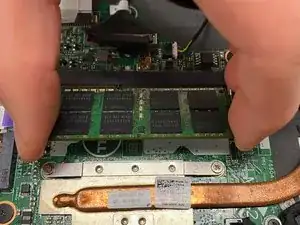

    • Release the RAM by unhinging the connecting bars outward.

  4. iftgRux3O5sqgLYt
    iftgRux3O5sqgLYt
    BU13YsIpv5kIdDIP

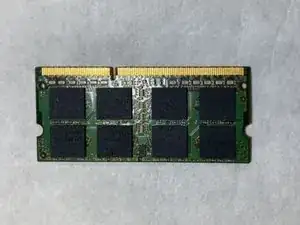

    • Remove the RAM.

Abschluss

To reassemble your device, follow these instructions in reverse order.
