Einleitung

By following the steps in this guide one should be able to replace the trackpad on your device (Dell Inspiron 7568)

  1. r2LOHF3bklQx5wc1
    r2LOHF3bklQx5wc1
    NZN2shdoLTnmYmEc
    • Remove the ten 7mm Phillips #1 screws on the bottom cover.

    • Remove the bottom cover.

  2. xvH2JJdQyOdVoFSK
    xvH2JJdQyOdVoFSK
    3oJWZuEXtCtLlfBP
    • Remove the four 3mm Phillips #1 screws holding the battery.

    • Unhinge the connector cable to the battery.

    • Remove the battery.

  3. olJcvxVU2sZL4GcC
    olJcvxVU2sZL4GcC
    BOEmfmdELdevnS1F

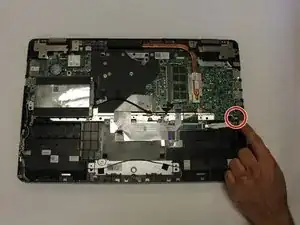

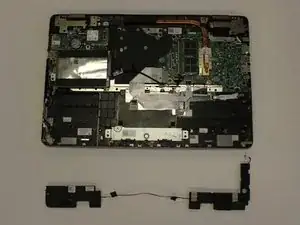

    • Unplug the speaker cable and remove the speakers

  4. 2QPJ1aEP2DRKrJVK
    2QPJ1aEP2DRKrJVK
    ClNPj4r1faoKu1Jo

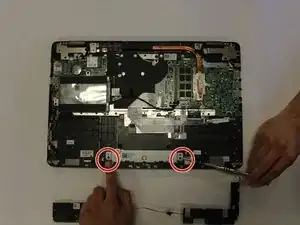

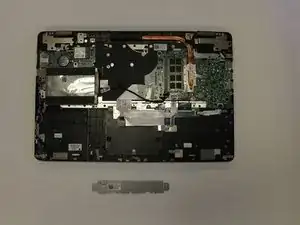

    • Unscrew & remove the two 3mm screws (using a ph1 screwdriver bit) holding the touchpad bracket

    • Remove the touchpad bracket

  5. PevawH3S4yJAcTkT
    PevawH3S4yJAcTkT
    LJNbJQHyVZIBhPXf
    IiqDBwLVGkWb22kN

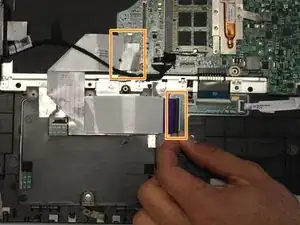

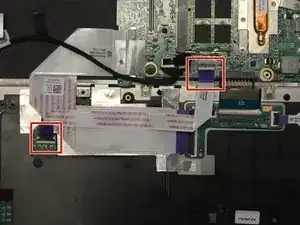

    • Use a nylon spudger to lift the ZIF connector tab. Gently pull the touchpad ribbon cable free.

    • Use a nylon spudger to lift the ZIF connector tab. Gently pull the keyboard daughter board ribbon cable free.

  6. v1ibKPMVlrUYTa2N
    v1ibKPMVlrUYTa2N
    ipPPWYE3Umae5Gkq
    IvUG2sMYt51me1iT

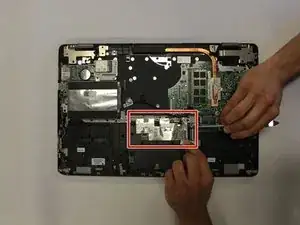

    • Remove the touchpad foil using a spudger or other ESD safe blunt-tip tool.

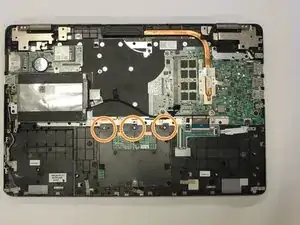

    • Unscrew & remove the three 2mm wafer screws holding the touchpad.

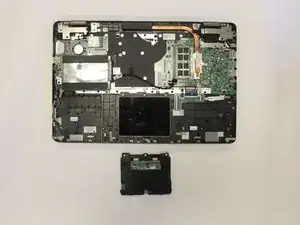

    • Remove the touchpad.

Abschluss

To reassemble your device, follow these instructions in reverse order.
