Dell Inspiron 7568 Wifi Card Replacement

Geschrieben von: Elijah Basile
  • Kommentare: 0
Dell Inspiron 7568 Wifi Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

5 Minuten

Einleitung

When removing or replacing the WiFi card of the Dell Inspiron 7568 it is important to make sure the laptop it is unplugged and completely turned off. User should also remember to be careful when unplugging and removing the battery. It is recommended that users keep different screw types separated to keep assembly easier. Make sure to uses a Phillips head #1 screw driver. Make sure to work in a static free area with static protection gloves.

  1. r2LOHF3bklQx5wc1
    r2LOHF3bklQx5wc1
    NZN2shdoLTnmYmEc

    • Remove the ten 7mm Phillips #1 screws on the bottom cover.

    • Remove the bottom cover.

  2. xvH2JJdQyOdVoFSK
    xvH2JJdQyOdVoFSK
    3oJWZuEXtCtLlfBP

    • Remove the four 3mm Phillips #1 screws holding the battery.

    • Unhinge the connector cable to the battery.

    • Remove the battery.

  3. UQZFwLW2yvqevv3D

    • Remove the three 3mm Phillips #1 screws connecting the hard drive to the laptop.

  4. wHdu2iyLARPLyHjD
    wHdu2iyLARPLyHjD
    oJiB2B1wcfDlEdgg

    • Disconnect the highlighted SATA cable from the hard drive.

  5. vwckjERRtWFyBXug

    • Remove the four 3mm Phillips #1 screws of the hard drive. Both sides look identical.

  6. go6DBkJNXtcVOaWF

    • Remove the hard drive (right) from its frame (left).

  7. q6sEjwkk6jmaIBHV
    q6sEjwkk6jmaIBHV
    fi5m2TZAfrAQT5uU

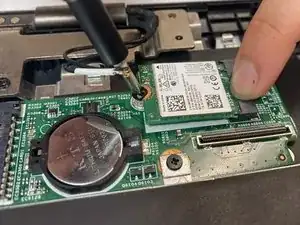

    • Remove the wide-brimmed 3mm Phillips #1 screw connecting the Wifi Card.

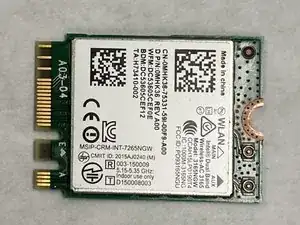

    • Remove the Wifi Card.

Abschluss

To reassemble your device, follow these instructions in reverse order.
