Dell Inspiron 7573 2-in-1 Hinge Replacement

Geschrieben von: Kylie Freese
  • Kommentare: 0
Dell Inspiron 7573 2-in-1 Hinge Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

45 Minuten

Einleitung

This guide will walk you through how remove the hinges from the systems board and palm rest of a Dell Inspiron 7573 2-in-1 computer. This guide is useful for replacing a hinge that may be defective or damaged. Complications such as your computer having a hard time opening and closing the screen may be remedied by replacing such hinges.

  1. VWWaI1me6RIE4jHl
    VWWaI1me6RIE4jHl
    LceKAZAwUFE5WfRJ

    • Make sure computer is off before you begin.

    • Remove the four 5 mm screws from the bottom edge of the laptop using a Phillips #00 screwdriver.

    • Loosen the remaining six captive screws from the bottom cover with a Phillips #00 screwdriver.

  2. RUfBKPttjIllBDvV
    RUfBKPttjIllBDvV
    ZXhZjKIKD3LuLRlL
    DdSJRVoCCvX31rOH

    • Using a spudger, pry off the bottom cover by gently prying from corner to corner in order to disengage the plastic clips.

    • Lift off the bottom cover.

    • After the base cover is removed, your laptop should look similar as depicted in the images provided.

  3. rFjCp5KAXFyjGHn5

    • Remove the four 3 mm screws holding the battery in place with a Phillips #00 screwdriver.

  4. fuwHdBSxSY2ZxXEg
    fuwHdBSxSY2ZxXEg
    RYtrlAEIOHYS2nRa
    3PbUtOdX5XXRA1y2

    • Using the pull tab, disconnect the battery cable from the system board.

    • Lift the battery out from the laptop case.

  5. hLxKQFFnkyYNcNyn
    hLxKQFFnkyYNcNyn
    d2RnmfDTGDnQrlnn
    A5vaE6Ys1OASlDRB

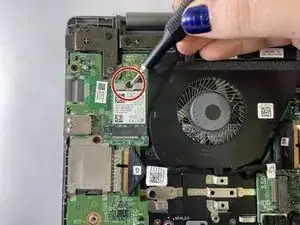

    • Using a Phillips #00 screwdriver, remove the 3 mm screw that secures the wireless-card bracket and wireless card to the I/O board.

    • Lift the wireless-card bracket off of the wireless card.

    • Disconnect the white and black antenna cables from the wireless card.

    • Slide and remove the wireless card from the wireless card slot.

  6. DUE5SpCXKHBreAP1
    DUE5SpCXKHBreAP1
    ROeKgcDRRIUGmDJ5
    cMnVrnromtakqtSy

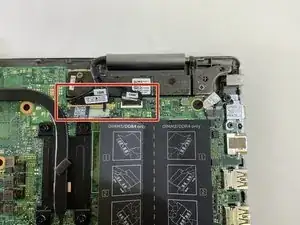

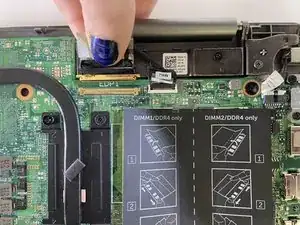

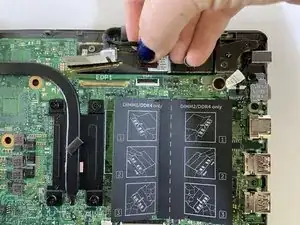

    • Peel off the tapes that secure the display cable and touch-screen board cable to the system board.

    • Open the latches and disconnect the display cable and the touch-screen board cable from the system board.

  7. OOdRky4OxsJxHqFR
    OOdRky4OxsJxHqFR
    PV325QNTLdxP6xtX
    O1EQaKET4gmLtA3U

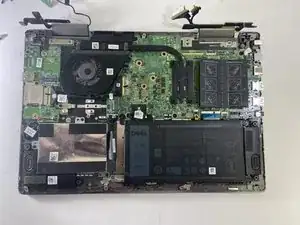

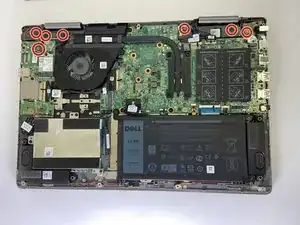

    • Remove the seven 2 mm screws that secure the display assembly hinges to the palm-rest assembly with a Phillips #00 screwdriver.

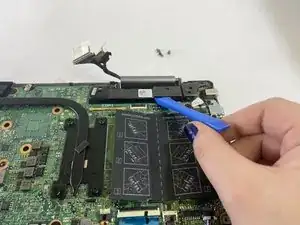

    • Use a plastic opening tool to gently lift up the hinges if they are difficult to move.

  8. gLKcBtRMTQZx2mP6
    gLKcBtRMTQZx2mP6
    mkvXcGyAcN5mEELb
    66UYPBYPbn3sqUlW

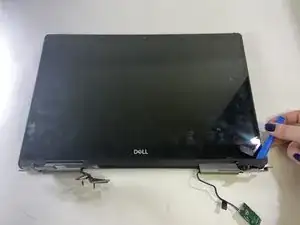

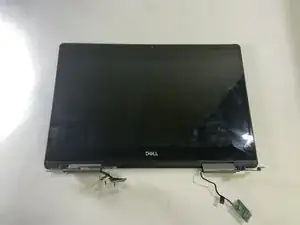

    • Separate the display assembly from the main laptop body.

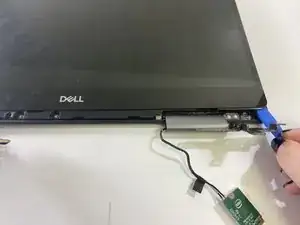

    • Use a spudger to gently remove the plastic lining at the bottom of the screen.

    • Once the plastic lining has been removed, use the spudger to gently lift up on the screen.

  9. gKKhrsVS2eFGHJ1V
    gKKhrsVS2eFGHJ1V
    mbdGHLWSSIpfoHk3
    PFnsSYockaD2ojFt

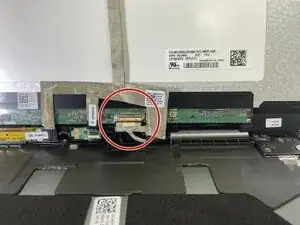

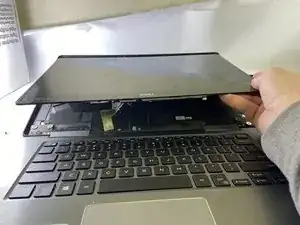

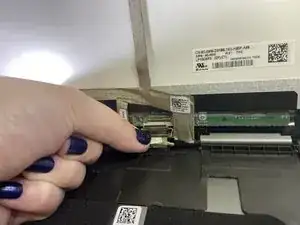

    • Gently lift the screen from the bottom edge to reveal the connectors beneath.

    • Disconnect it by pulling in a downward motion.

  10. kWB1DxJjwSECoOXQ
    kWB1DxJjwSECoOXQ
    S3lXM1YKonrwrq4p

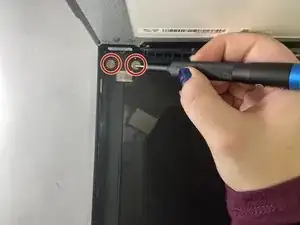

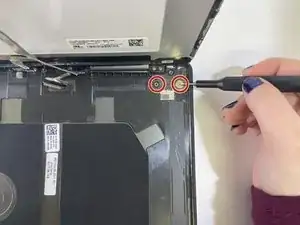

    • Remove four 2 mm Phillips #00 screws behind the screen display.

  11. n6hlAaQWULOOuRZO

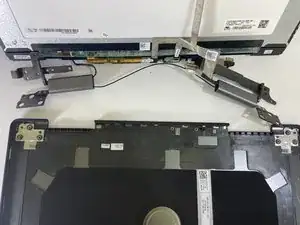

    • Remove the hinges from the screen display and I/O board.

    • If your replacement hinges did not come with cables included, be sure to gently pull the cables out from the hinges before you dispose of them. It may be useful to jot down how the cables were configured to help as you reroute them.

Abschluss

To reassemble your device, follow these instructions in reverse order.
