Does your battery life seem to be diminishing? Are you constantly in search of a power outlet in public spaces? It may be time to replace the battery in your device; this guide will reduce your charging time and double your screen time! Inside the device lies a 68 Wh Standard Rechargeable Dell Li-ion Battery. The following guide will illustrate the steps to replace this vital component.
Werkzeuge
-
-
Use a Phillips #000 screwdriver to remove seven screws securing the base face of your device.
-

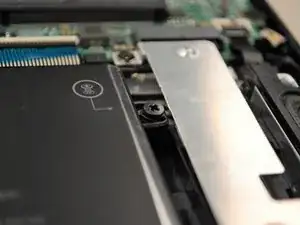

Unscrew the remaining two screws in the corners closest to the bottom of the base of the laptop.
-
-
-

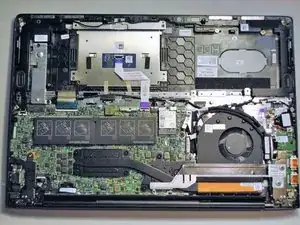

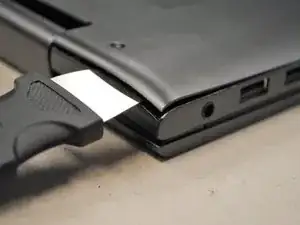

Using a Jimmy, work your way around the edge of the back panel and the side of the laptop to remove the back panel.
-

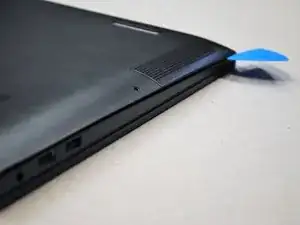

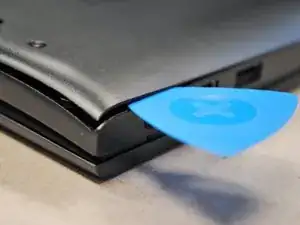

Separate the remainder of the paneling using an Opening Pick.
-
-
-

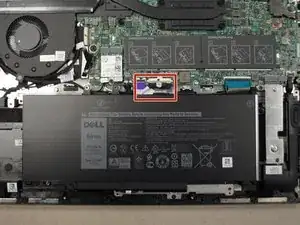

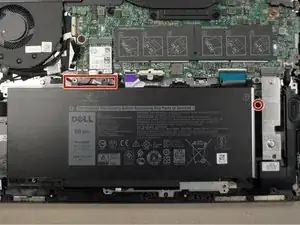

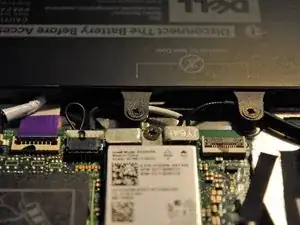

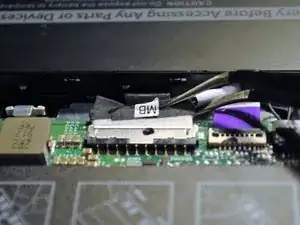

Using a pair of tweezers, disconnect the ribbon cable connecting the battery to the motherboard.
-

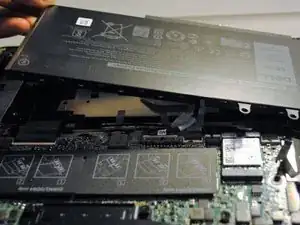

To reassemble your device, follow these instructions in reverse order.
