Dell Inspiron 8600 Display Removal

Geschrieben von: Victor
  • Kommentare: 0
Dell Inspiron 8600 Display Removal

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 - 30 Minuten

Einleitung

Follow this guide to remove the display module of your Dell Inspiron 8600.

  1. H5bBYX1QTDXQvO15

    • Remove the battery from the bottom left of the laptop. It is a long, rectangular shape.

    • Please click on the following link for further instruction on how to remove the battery. Dell Inspiron 9100 Battery Replacement

    • Remove the battery before operating on the computer to avoid electrocution.

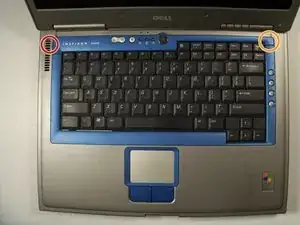

  2. VPgLiQ5olbRHLJl6
    VPgLiQ5olbRHLJl6

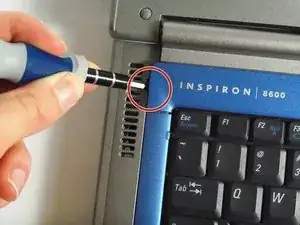

    xGIKAYgQWGSFcWaQ

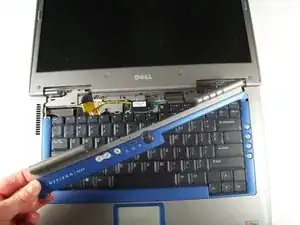

    bStcnGCCH4xjBtcD

    • Insert a spudger into the notch at the far left side of the top blue panel and pry the hinge cover off.

    • You may need to pry the other side off as well. You can do this by inserting the spudger between the hinge and the top cover.

    • Be careful of the wire attached to the underside of the hinge cover.

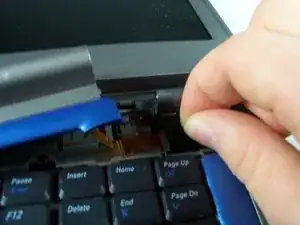

  3. NIPNKk6aaYI4lki1

    • Pull the small black tab on the right hand side of the laptop.

    • You have now removed the hinge cover.

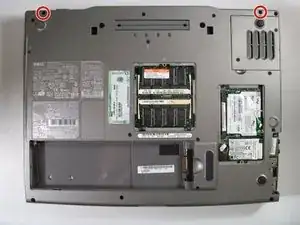

  4. ctofAQmWEIoxMS23
    ctofAQmWEIoxMS23
    2lRbJJBWIaafxoLN

    • Flip the laptop over and remove the indicated screws.

    • Flip the laptop back over.

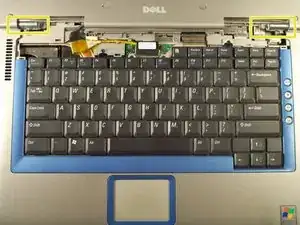

    • Find the two places where the display module is attached to the base of the computer.

  5. FTr5yemRQWJDRKtg

    • Disconnect the video card from the display module by gently lifting upwards on the black tab.

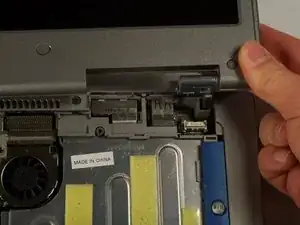

  6. tLmloPXFiMbSwwj3
    tLmloPXFiMbSwwj3

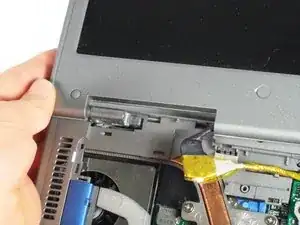

    MRTwOZsSoeAu15Ji

    • Lift the display module directly upwards from the base of the computer.

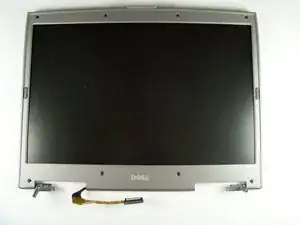

  7. cbWZoMsNpduhHHTq

    • Now remove the display module.

Abschluss

To reassemble your device, follow these instructions in reverse order.
