Dell Inspiron 8600 Keyboard Replacement

Geschrieben von: Perry
  • Kommentare: 1
Dell Inspiron 8600 Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

If you need to replace the keyboard of your Dell Inspiron 8600, follow this guide.

  1. H5bBYX1QTDXQvO15

    • Remove the battery from the bottom left of the laptop. It is a long, rectangular shape.

    • Please click on the following link for further instruction on how to remove the battery. Dell Inspiron 9100 Battery Replacement

    • Remove the battery before operating on the computer to avoid electrocution.

  2. VPgLiQ5olbRHLJl6
    VPgLiQ5olbRHLJl6
    xGIKAYgQWGSFcWaQ
    bStcnGCCH4xjBtcD

    • Insert a spudger into the notch at the far left side of the top blue panel and pry the hinge cover off.

    • You may need to pry the other side off as well. You can do this by inserting the spudger between the hinge and the top cover.

    • Be careful of the wire attached to the underside of the hinge cover.

  3. NIPNKk6aaYI4lki1

    • Pull the small black tab on the right hand side of the laptop.

    • You have now removed the hinge cover.

  4. dyNFVyTXWXcBtDbr
    dyNFVyTXWXcBtDbr
    woZnEwYinBwiFWum
    BsNTqJWXhDSpvIlh

    • Using the Phillips #1 remove the screws at the top of the keyboard as indicated.

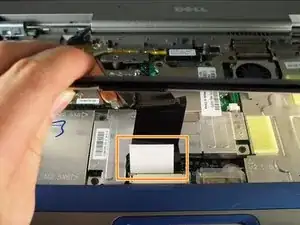

    • Do not just lift up. There is a tab underneath the keyboard that is still connected to the mother board.

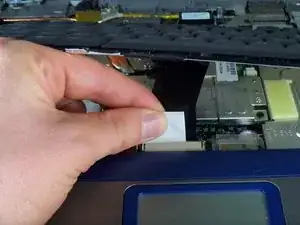

    • You will need to pull out the white tab underneath the keyboard upwards until it pops out of its socket.

    • The keyboard should be easily removable at this point.

Abschluss

To reassemble your device, follow these instructions in reverse order.
