Dell Inspiron 8600 Touch Pad Replacement

Remove the battery from the bottom left of the laptop. It is a long, rectangular shape.

Insert a spudger into the notch at the far left side of the top blue panel and pry the hinge cover off.

You may need to pry the other side off as well. You can do this by inserting the spudger between the hinge and the top cover.

Pull the small black tab on the right hand side of the laptop.

You have now removed the hinge cover.

Using the Phillips #1 remove the screws at the top of the keyboard as indicated.

You will need to pull out the white tab underneath the keyboard upwards until it pops out of its socket.

Flip the laptop over and remove the indicated screws.

Flip the laptop back over.

Find the two places where the display module is attached to the base of the computer.

Disconnect the video card from the display module by gently lifting upwards on the black tab.

Lift the display module directly upwards from the base of the computer.

Now remove the display module.

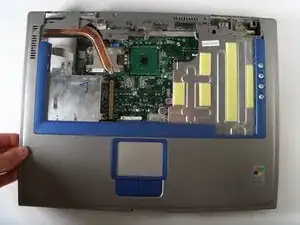

Pop the upper case off, and replace.
