Dell Inspiron 910 Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 Minuten

Einleitung

  1. rL6CLPTNI3hrheqE

    • Flip the laptop so the battery is facing upwards.

    • Push the battery release tabs toward the center of the device.

    • Remove the battery.

  2. 4TtZQkHSEcH1Qhdk

    • Remove the two countersunk keyboard screws using the Phillips #00 screwdriver.

  3. MgUr3MTYkvQgK1ca

    • Lift up the keyboard using your fingers or a plastic opening tool.

    • Potential for device damage: Do not tear the ribbon cable hidden behind the keyboard.

    • Disconnect the cable by sliding the connector ears outward.

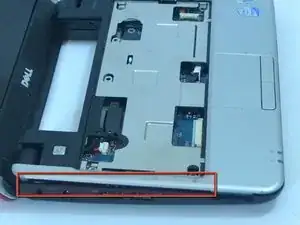

  4. BqONQvDjSvCWOw5U

    • After removing the keyboard, use the plastic opening tool or other form of leverage to remove the rest of the silver casing.

    • Depending on your model, there could still be some hidden screws on the bottom case of the laptop that hold the palm-rest in place.

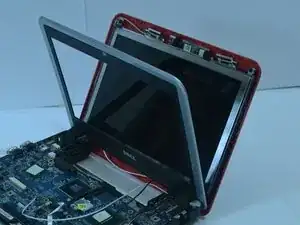

  5. HLV5bxpCHdPThsTq

    • Use a plastic tool to carefully pry the silver portion front of the top away from the colored portion.

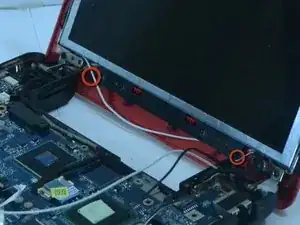

  6. 5jLjBUxxKcuABL4F

    • Using the Phillips #00 screwdriver, remove the two small screws at the bottom corners of the speaker assembly.

    • Keep track of where you put the screws after you remove them. Keep screws of the same size together and away from screws of different sizes.

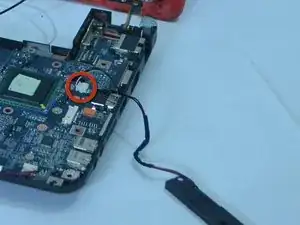

  7. CXGXjaXoIxLiTLfT

    • Slide out the cables connected to the speakers and the base below the keyboard.

    • Remove the speakers from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
