Dell Inspiron E1405 Heat Sink Replacement

Geschrieben von: Sarah Neal Secrest
  • Kommentare: 0
Dell Inspiron E1405 Heat Sink Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

10 Minuten

Einleitung

This guide will help you replace the heat sink in a Dell Inspiron 1305.

  1. YKNGRcF2jRWvJkNP

    • Save your work, power the laptop off, and ensure that the charging cable is unplugged before removing the battery.

    • Flip the laptop over.

    • Locate the battery release switch on the bottom of the laptop.

  2. XpGIm3CdrIDWmS22
    XpGIm3CdrIDWmS22
    CejGw4yR5CQUSwdH
    EJrZbVRrJsD5nHum

    • Slide the battery release switch away from the lock symbol until you hear the battery click.

    • Slide the battery towards the back of the laptop until it comes free.

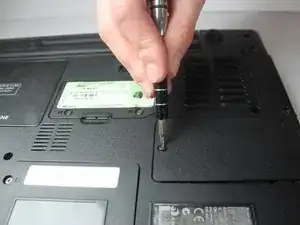

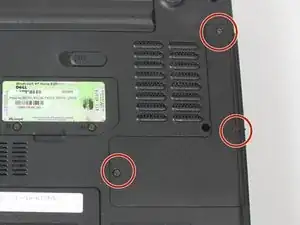

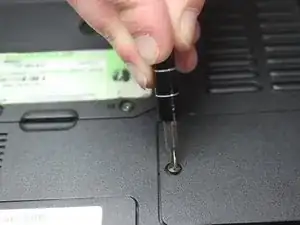

  3. PtW4MspK3bBTcp1Y
    PtW4MspK3bBTcp1Y
    IKHHOs4Y4p4JbFu1
    guMmIaEnwA6UEtKA

    • Remove/loosen the eight 4.8mm screws with a #1 Phillips screwdriver securing the bottom panel.

    • Remove the bottom panel.

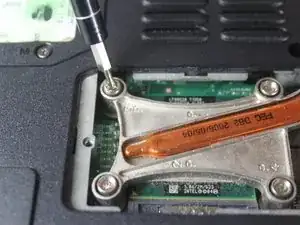

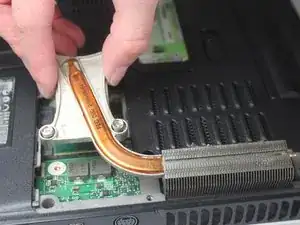

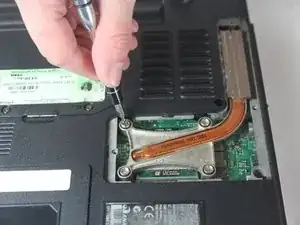

  4. 3YDohdIMXIbQKICc
    3YDohdIMXIbQKICc
    qJ5Xu5I2ZjuKgZpW
    UxBsyQLXTnXrCkAR

    • Loosen the five 5.5mm screws with a #1 Phillips screwdriver securing the heat sink and clean it with compressed air

    • Gently lift the heat sink from the side, as indicated in the picture.

Abschluss

To reassemble your device, follow these instructions in reverse order.
