Dell Inspiron E1705 RAM Replacement

Schwierigkeitsgrad

Very easy

Schritte

5

Zeitaufwand

10 - 15 Minuten

Einleitung

Please read the troubleshooting section before using this repair guide to take apart your computer. Many problems can be resolved without taking the computer apart.

It is important to remove the battery before following these instructions. It will ensure no electrical discharge to occur. If you are unsure at all about how to remove the battery please refer to the battery repair guide for this item.

  1. TOdTjpkb45FovFEF

    • Make sure that the computer is turned off and is disconnected from external power source.

    • Turn it upside down and locate the battery release switch.

    Introduction: Parts: Need to add the Fan Part Numbers

    Original equipment: CPU Fan DC28A000820, GPU Fan DC28A000920

    John Frazier -

  2. JGpfhAlcMRt6PDQf
    JGpfhAlcMRt6PDQf
    YsDcehP3sPdKYgYH

    • While holding the switch in the open position, lift out the battery.

    • If you plan to work on any internal laptop components, press and hold the power button for 5 seconds. This will dissipate any residual charge on the motherboard to prevent electrical shock when you begin to handle it.

  3. PGqhkNhsx2KXMThm
    PGqhkNhsx2KXMThm
    ayNSjpoAeAaVJZjF

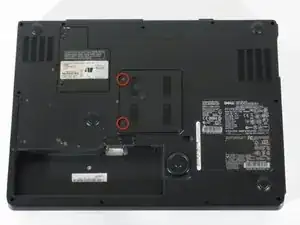

    • Turn the computer over, screen closed, so that the underside is showing

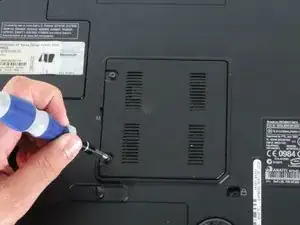

    • Locate the two screws as shown and remove them.

    • Use a small phillips head screwdriver

  4. AVyLVLlyIPfvmk6w
    AVyLVLlyIPfvmk6w
    ktQEXIUFxBGc2x6a
    QqOXxiL4jYPSyXIR

    • Remove plastic cover carefully

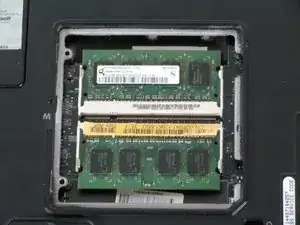

    • There will be two RAM sticks as shown

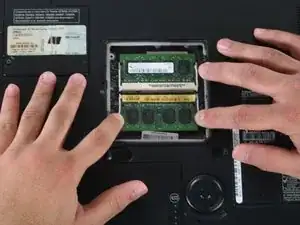

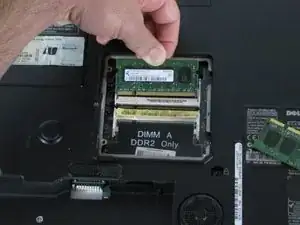

    • Using your fingers, pull the sides apart that are holding the RAM in place. This will release the RAM.

  5. 2niQICfDlV4lmbFY

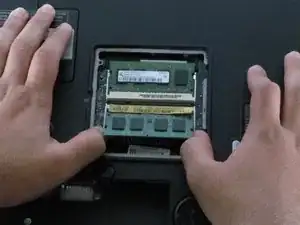

    • Carefully remove old/damaged RAM sticks and replace with new ones.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Evan Fairchild

Mitglied seit: 05/10/10

601 Reputation

Ein Kommentar

If upgrading RAM, a black DOS based screen will show stating "the amount of RAM in system has changed", wait 1minute and the computer will beep and prompt for F1 (boot normally) or F2 (run system setup utility). Pressing F2 and waiting some time will allow the computer to reconfigure and then boot into Windows normally.
