Dell Inspiron M5010 Camera Replacement

Geschrieben von: April Poucher
  • Kommentare: 5
Dell Inspiron M5010 Camera Replacement

Schwierigkeitsgrad

Difficult

Schritte

19

Zeitaufwand

30 - 40 Minuten

Einleitung

  1. 5yFckkuiru6imhZR
    5yFckkuiru6imhZR
    qHIRNEtgGBhkiYoh

    • Make sure laptop is powered off before removing the battery.

    • Slide both arrow tabs towards the outer edge of the computer to release the battery.

    • Battery is not shown.

  2. COgbO1rw1KaEFUdb

    • Remove Keyboard retaining screw from bottom of laptop.

  3. UGxBeZLDABGkJZqb
    UGxBeZLDABGkJZqb
    jZMZfXsKxpGJodss
    RPrQlAfdQPcjZZOi

    • Insert the 6 inch metal ruler, or another flat object into the holes in the top left of the keyboard, the top middle of the keyboard, and the top right of the keyboard to release the keyboard from the computer.

    • There are a number of screws on the bottom that required to be removed prior to the keyboard being able to be lifted up.

    "There are a number of screws on the bottom that required to be removed prior"

    That's a very unhelpful step! What are they and which ones?!? I'm following two YouTube videos that show this stage and both have a single screw that holds the keyboard im place which my N5010 simply doesn't have. So my keyboard is held in place and I can't lift it.

    Melvyn Mildiner -

    Melvyn, I agree. This not up to iFixit's standards.

    David Maag -

    I have only discovered one screw that releases the keyboard. It is under the RAM access panel

    David Maag -

    Some versions of this model have a bit of double-sided sticky tape that holds down the left side of the keyboard quite firmly. If you are sure you have removed all of the screws from the back of the laptop then gently pull up up the keyboard keeping it as flat as possible until it unsticks. No idea why they would do that when there are screws holding it down but it is what it is.

    ParGellen -

    It was also only the one screw for me, and no double-sided tape. I had to use a small flathead screwdriver to gently pry up the right corner of the keyboard while holding the closest tab in with the flat end of a spudger.

    Nick -

  4. 5aIeye4mhLDICYsQ

    • Lift the keyboard up slightly and push forward in order to release bottom tabs.

  5. gaxRxttyRHmOjIb3

    • Pull the black tab up and then pull left on keyboard plug to release keyboard.

  6. hwOIAEaB5k6qoQYF

    • Flip the laptop, so the bottom of the laptop is facing up.

    • Remove the seven 6.0mm Phillip #000 screws indicated using the Phillips #000 screwdriver.

  7. GIrqeqAXWXeB3LkM
    GIrqeqAXWXeB3LkM
    ovvU2ZrRuCNIlgGX

    • Flip the laptop back over, so that the top of the laptop is facing up.

    • Open the laptop.

    • Remove all of the indicated 6.0 mm screws with the Phillips #000 screwdriver.

  8. atH6uNGQp3MGaAsh

    • Unplug the palm rest cables by lifting the black tab up and then pulling on the blue tabs.

  9. vhXMW2mWfsuFUjG1
    vhXMW2mWfsuFUjG1
    ALoUXGAFnmraBYSX
    QSwDhQpmh35iV5Jr

    • Carefully unsnap and remove the palm rest.

    • Place your fingers inside the large circle in the lower right corner to get a good grip.

  10. FytWx6NtTGPDBlPE

    • Flip the laptop over to its backside.

    • Using the Phillips #000 Screwdriver remove the six indicated 6.0mm Phillips #000 screws.

  11. BPEBKuIgrPxWKxvH

    • Flip the laptop over to its front side and open the laptop.

    • Remove the four 6.0mm Phillips #000 screws holding the screen to the base of the laptop using a Phillips #000 Screwdriver.

  12. 2JEaqMYhWfRo2sj1
    2JEaqMYhWfRo2sj1
    TkuuXZvh4hYhAGAf

    • Pull up both the black and white chords to completely detach the screen.

  13. A2pdqSMyICLEOPkP
    A2pdqSMyICLEOPkP
    EpIUyrJCCkyP6ZuK

    • Lift the screen from the base of the laptop.

  14. pXObMjoNwAqL1L6L
    pXObMjoNwAqL1L6L
    N53ttAKCCJVyMJ6T

    • Use a spudger to separate and remove the plastic frame on the front of the screen.

  15. 6rVCVlymusTkTg2Q
    6rVCVlymusTkTg2Q
    iQU4GdYjeDsqFEih

    • Use a Phillips #000 Screwdriver to remove the 8 6.0mm Phillips #000 screws marked in the image.

  16. FjQSfU3AHv6tWcoS

    • Lift LCD screen from the plastic frame.

  17. YrYWNBbFvS15LeMr
    YrYWNBbFvS15LeMr
    qLiyMgmRUOquFvdC
    ExpIgqiFXnvIixAI

    • Flip LCD screen over to view the backside.

    • Lift brown tab in the middle of the screen and pull to remove the entire piece.

  18. IAVZPNZJPtwPdOi6
    IAVZPNZJPtwPdOi6
    d55IJOlCoUUYABjU

    • Use a Phillips #000 Screwdriver to remove the four screws indicated (two on each side).

    • Pull metal frames away from LCD screen.

    • The metal frame on each side is pulled away separately, so make sure to make note of which side each one came from.

  19. h2L6nonMRX5h4tsL
    h2L6nonMRX5h4tsL
    M1uHiqoIvNX4QZ2f

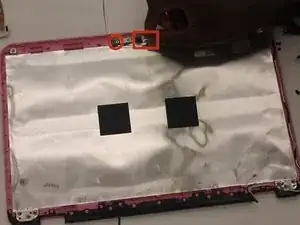

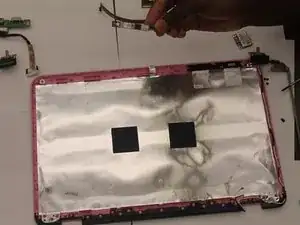

    • Using a Phillips #000 Screwdriver, remove the indicated 6.0 mm screw on the left side of the camera.

    • Pull the tab and release the ribbon on the right side of the camera.

    • Pull the camera away from the plastic frame.

Abschluss

To reassemble your device, follow these instructions in reverse order.
