Dell Inspiron M5010 Display Assembly Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron M5010 Display Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

2 - 6 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Display Assembly.

  1. vOnRQPWXYOS1ceJC

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the instructions in Before You Begin.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • Turn the computer over and remove the two screws.

  2. 2hQLauapUs1Kdi2A

    • Disconnect the Mini-Card antenna cables from the Mini-Card.

  3. pwDJtLJj1wy1MAUM

    • Disconnect the display cable from the connector on the system board and remove it from the routing guide.

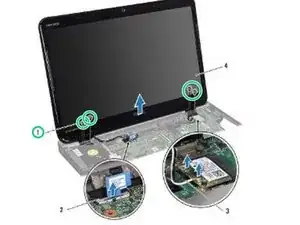

  4. Q1MGOx6ZOh2RDIV4

    • Remove the four screws (two on each side) that secure the display assembly to the computer base.

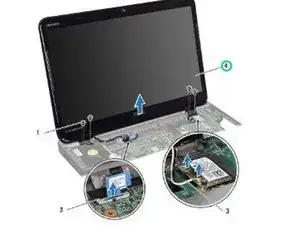

  5. yQGvNjddcivmWaZX

    • Lift and remove the display assembly out of the computer base.

  6. EEVTOXrfmYoSqWXN

    • Place the NEW display assembly in position and replace the four screws (two on each side) that secure the display assembly to the computer base.

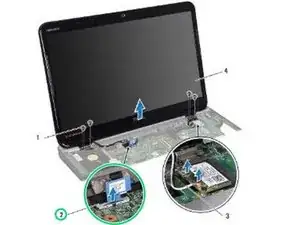

  7. DAcxyDAGyTbRhv3M

    • Route the display cable into the routing guide and connect the cable to the connector on the system board.

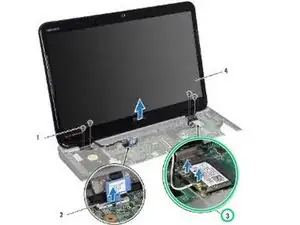

  8. hQ2bBZjFjMwGGGmi

    • Connect the Mini-Card antenna cables to the connectors on the Mini- Card.

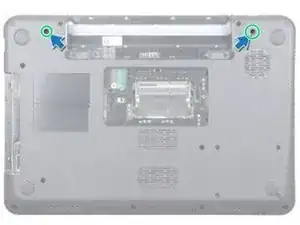

  9. RfdHptRjx2eXfTHU

    • Turn the computer over and replace the two screws at the bottom of the computer.
