Dell Inspiron M5010 Hard Drive Replacement

Geschrieben von: Sydney Moseley
  • Kommentare: 5
Dell Inspiron M5010 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

10 - 20 Minuten

Einleitung

  1. 5yFckkuiru6imhZR
    5yFckkuiru6imhZR
    qHIRNEtgGBhkiYoh

    • Make sure laptop is powered off before removing the battery.

    • Slide both arrow tabs towards the outer edge of the computer to release the battery.

    • Battery is not shown.

  2. COgbO1rw1KaEFUdb

    • Remove Keyboard retaining screw from bottom of laptop.

  3. UGxBeZLDABGkJZqb
    UGxBeZLDABGkJZqb
    jZMZfXsKxpGJodss
    RPrQlAfdQPcjZZOi

    • Insert the 6 inch metal ruler, or another flat object into the holes in the top left of the keyboard, the top middle of the keyboard, and the top right of the keyboard to release the keyboard from the computer.

    • There are a number of screws on the bottom that required to be removed prior to the keyboard being able to be lifted up.

    "There are a number of screws on the bottom that required to be removed prior"

    That's a very unhelpful step! What are they and which ones?!? I'm following two YouTube videos that show this stage and both have a single screw that holds the keyboard im place which my N5010 simply doesn't have. So my keyboard is held in place and I can't lift it.

    Melvyn Mildiner -

    Melvyn, I agree. This not up to iFixit's standards.

    David Maag -

    I have only discovered one screw that releases the keyboard. It is under the RAM access panel

    David Maag -

    Some versions of this model have a bit of double-sided sticky tape that holds down the left side of the keyboard quite firmly. If you are sure you have removed all of the screws from the back of the laptop then gently pull up up the keyboard keeping it as flat as possible until it unsticks. No idea why they would do that when there are screws holding it down but it is what it is.

    ParGellen -

    It was also only the one screw for me, and no double-sided tape. I had to use a small flathead screwdriver to gently pry up the right corner of the keyboard while holding the closest tab in with the flat end of a spudger.

    Nick -

  4. 5aIeye4mhLDICYsQ

    • Lift the keyboard up slightly and push forward in order to release bottom tabs.

  5. gaxRxttyRHmOjIb3

    • Pull the black tab up and then pull left on keyboard plug to release keyboard.

  6. hwOIAEaB5k6qoQYF

    • Flip the laptop, so the bottom of the laptop is facing up.

    • Remove the seven 6.0mm Phillip #000 screws indicated using the Phillips #000 screwdriver.

  7. GIrqeqAXWXeB3LkM
    GIrqeqAXWXeB3LkM
    ovvU2ZrRuCNIlgGX

    • Flip the laptop back over, so that the top of the laptop is facing up.

    • Open the laptop.

    • Remove all of the indicated 6.0 mm screws with the Phillips #000 screwdriver.

  8. atH6uNGQp3MGaAsh

    • Unplug the palm rest cables by lifting the black tab up and then pulling on the blue tabs.

  9. vhXMW2mWfsuFUjG1
    vhXMW2mWfsuFUjG1
    ALoUXGAFnmraBYSX
    QSwDhQpmh35iV5Jr

    • Carefully unsnap and remove the palm rest.

    • Place your fingers inside the large circle in the lower right corner to get a good grip.

  10. ECegbUVMAZ2uwWhJ

    • Remove the 4 mm Hard Drive screws with the Phillips #000 screwdriver.

  11. gAN3lFHKsxA1wJNZ
    gAN3lFHKsxA1wJNZ
    4h1faxjaDYsGxbEI

    • Flip laptop over.

    • Open lap top.

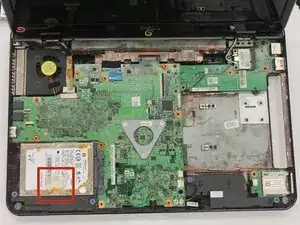

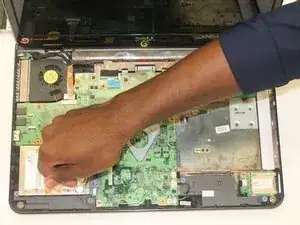

    • Pull the clear tab attached to the hard drive and gently lift up the hard drive.

Abschluss

To reassemble your device, follow these instructions in reverse order.
